Exploded Views




Wiper and Washer System - Exploded View

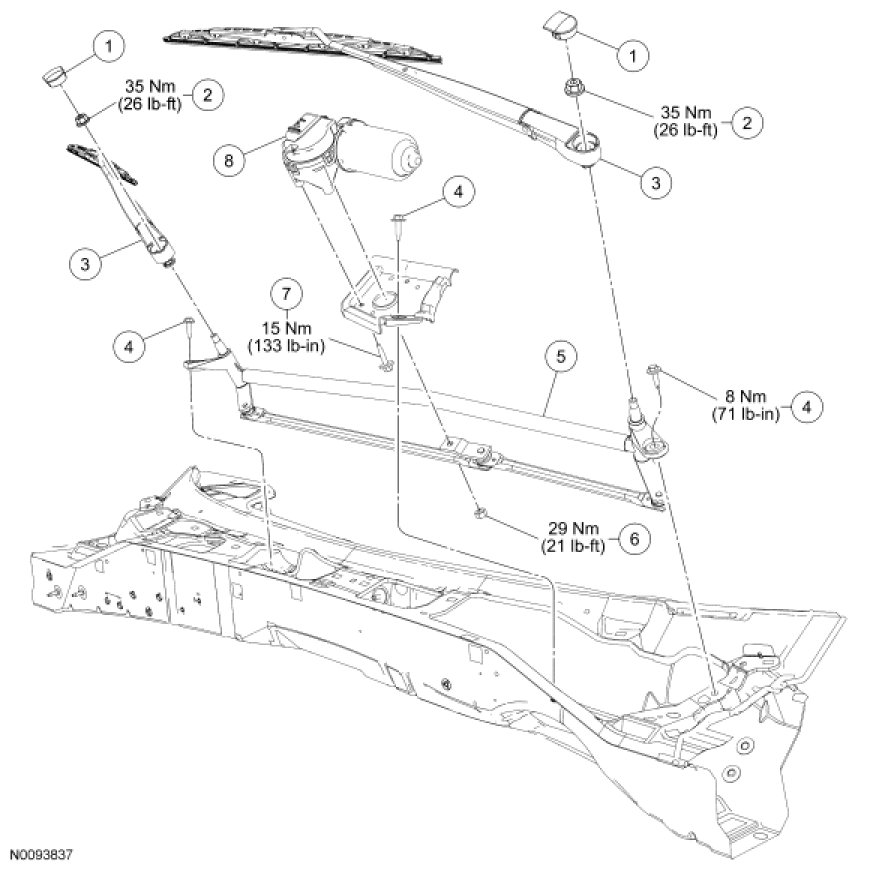

Front Wiper System

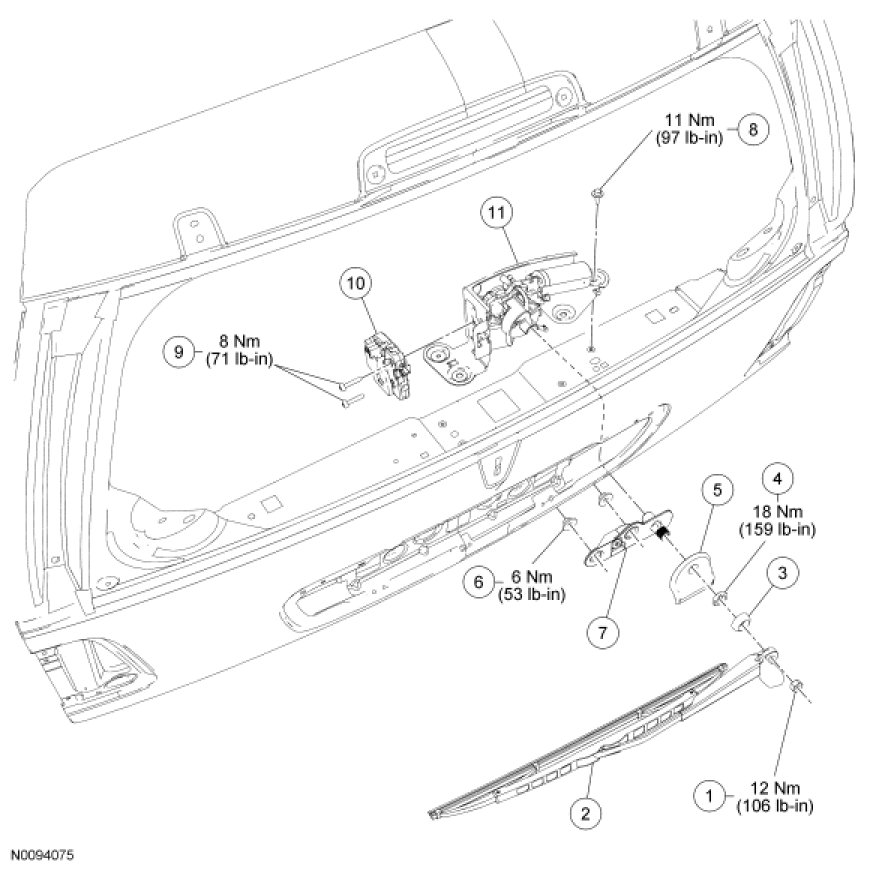

Rear Wiper System

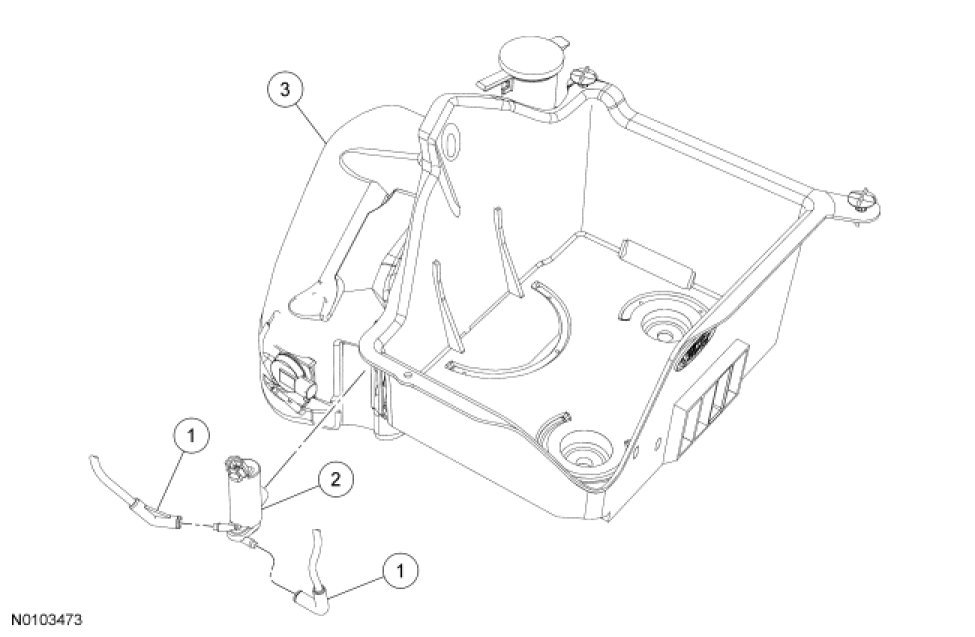

Washer System
