Right Side Front Power Window Switch Connector End View - C624

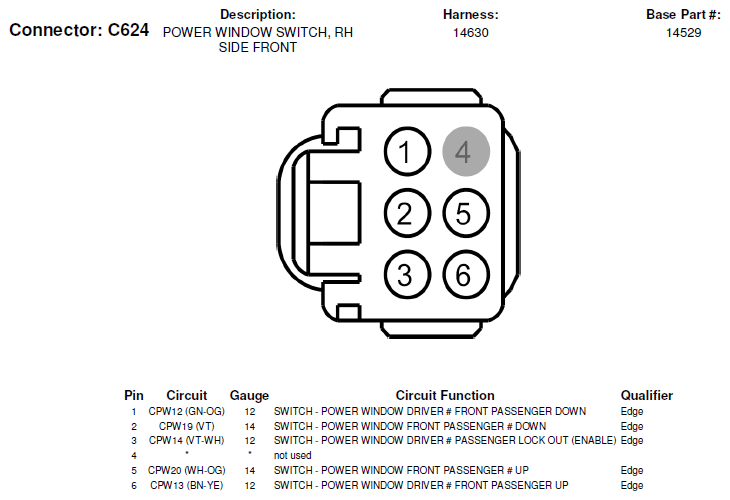

Fig 1: Right Side Front Power Window Switch Connector End View (C624)
G06287215Courtesy of FORD MOTOR CO.
