Control Module: Service and Repair

4X4 Control Module

Removal and Installation

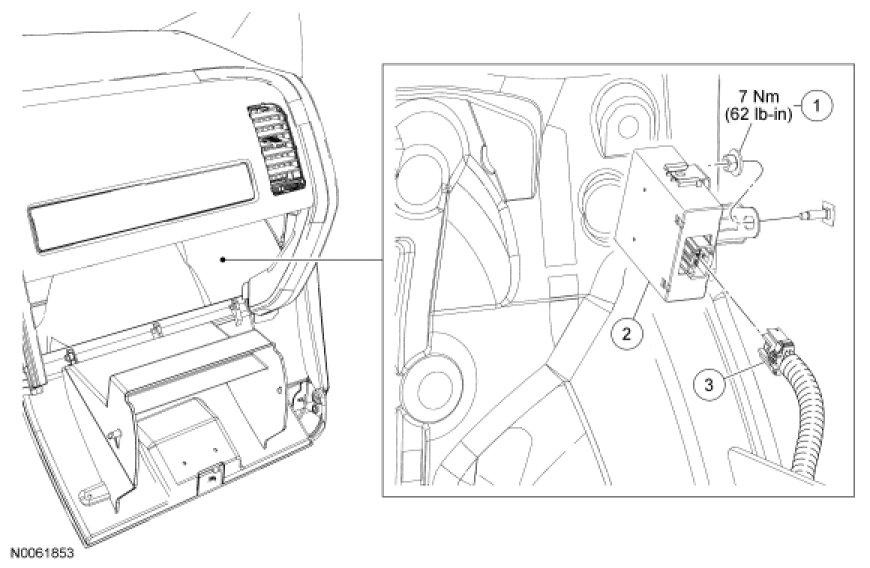

1. From below the RH side instrument panel, remove the hush panel.

2. Disconnect the 4X4 control module harness connector.

3. Remove the 4X4 control module nut.
- To install, tighten to 7 Nm (62 lb-in).

4. Remove the 4X4 control module and bracket.

5. To install, reverse the removal procedure.
