Front Display Interface Module Connector - C2123

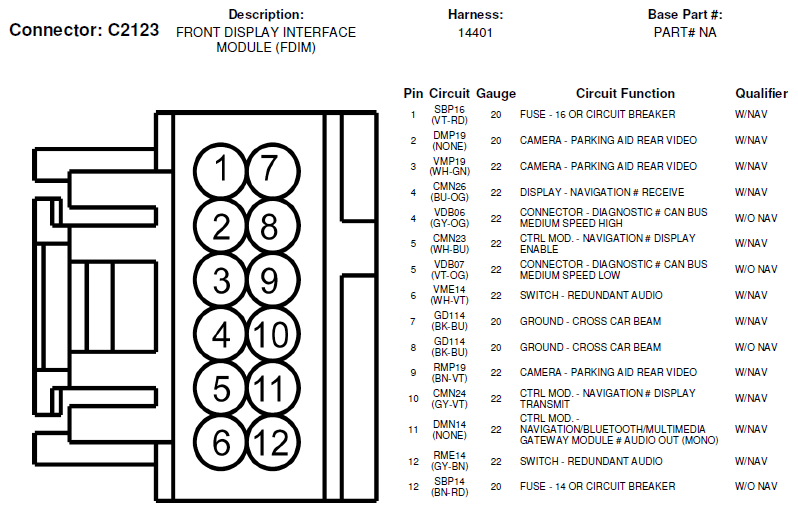

Fig 1: Front Display Interface Module Connector End View (C2123)
G06413507Courtesy of FORD MOTOR CO.
