Parking Assist Control Module: Service and Repair

Parking Aid Module (PAM) - Navigator









Removal and Installation

1. NOTE: Module configuration is only required if a new Parking Aid Module (PAM) is being installed.

Upload the PAM configuration information to the scan tool.

2. Remove the LH quarter trim panel.

3. If replacing the parking aid speaker only, proceed as follows:
- Disconnect the parking aid speaker electrical connector.

- Disengage the parking aid speaker clips.

- Remove the parking aid speaker.

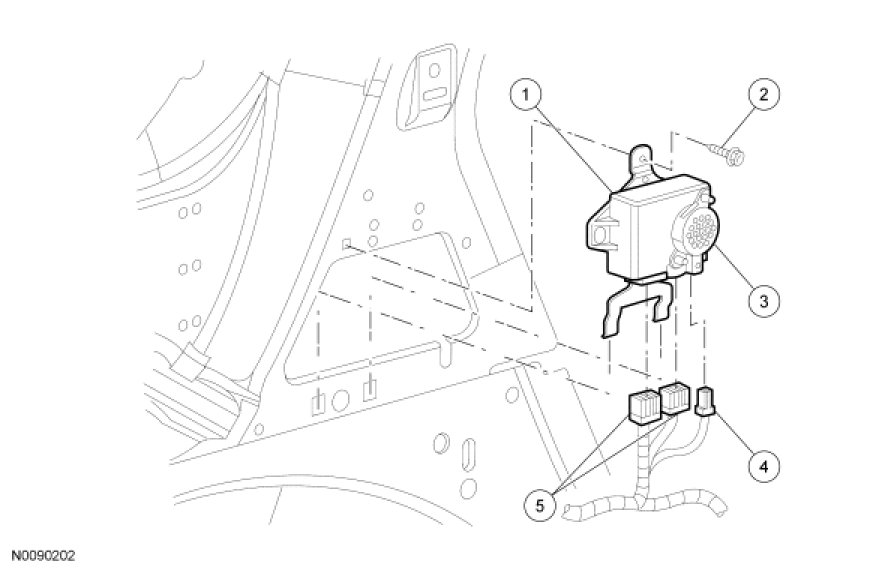

4. If replacing the PAM, proceed as follows:
- Disconnect the electrical connectors.

- Remove the PAM bracket screw.

- Remove the PAM.

5. To install, reverse the removal procedure.
