Power Steering Pump - 2.3L: Notes
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

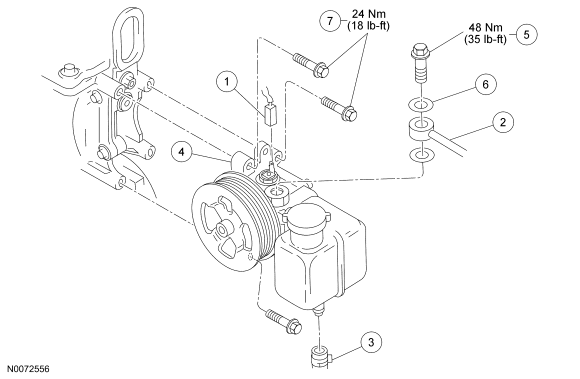

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Power steering pressure switch electrical connector |
| 2 | - | Power steering pressure line (part of 3A719) |
| 3 | 3R807 | Power steering return hose |
| 4 | 3D639 | Power steering pump |
| 5 | - | Pressure line-to-power steering pump banjo bolt (part of 3A705) |
| 6 | - | Power steering pressure line seal (part of 3A705) |
| 7 | W500111 | Power steering pump bolts (3 required) |
