Selector Lever Cable: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the selector lever bezel. For additional information, refer to SELECTOR LEVER BEZEL  and SELECTOR LEVER KNOB .
  3. Disconnect the selector lever cable end from the selector lever.
    Fig 1: Locating Selector Lever Cable End From Selector Lever
    G06076610Courtesy of FORD MOTOR CO.
  4. Depress the 2 tabs and remove the selector lever cable from the selector lever.
    Fig 2: Locating Tabs And Selector Lever Cable
    G06076611Courtesy of FORD MOTOR CO.
  5. Remove the LH floor console finish panel to access the cable retainer and rubber grommet.
    Fig 3: Locating Floor Console Finish Panel To Access Cable Retainer And Rubber Grommet (LH)
    G06064322Courtesy of FORD MOTOR CO.
  6. Disconnect the selector lever cable retainer from the center counsel and route the cable out from under the heater housing.

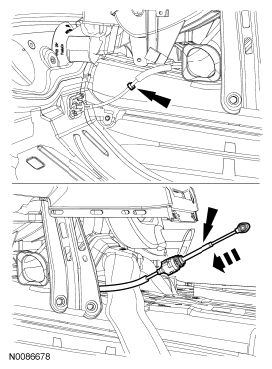

    Fig 4: Locating Selector Lever Cable Retainer From Center Counsel
    G06076613Courtesy of FORD MOTOR CO.
  7. Remove the nuts from the rubber grommet at the bulkhead.
    Fig 5: Locating Rubber Grommet At Bulkhead And Nuts
    G06064276Courtesy of FORD MOTOR CO.
  8. Disconnect the Mass Air Flow (MAF) sensor electrical connector.
    Fig 6: Locating Mass Air Flow (MAF) Sensor Electrical Connector
    G06067664Courtesy of FORD MOTOR CO.
  9. Disconnect the engine breather from the Air Cleaner (ACL) assembly.
    Fig 7: Locating Engine Breather From Air Cleaner (ACL) Assembly
    G06067665Courtesy of FORD MOTOR CO.
  10. Remove the 2 ACL  assembly bolts.
    Fig 8: Locating ACL Assembly Bolts
    G06067666Courtesy of FORD MOTOR CO.
  11. Loosen the ACL  outlet pipe clamp at the Throttle Body (TB) and remove the ACL  and ACL  outlet pipe assembly.
    Fig 9: Locating ACL Outlet Pipe Clamp
    G06067667Courtesy of FORD MOTOR CO.
  12. Disconnect the selector lever cable retainer from the brake tube bracket.
    Fig 10: Locating Selector Lever Cable Retainer From Brake Tube Bracket
    G06064281Courtesy of FORD MOTOR CO.
  13. Disconnect the selector lever cable end from the manual control lever.
    Fig 11: Locating Selector Lever Cable End From Manual Control Lever
    G06064282Courtesy of FORD MOTOR CO.
  14. Depress the 2 tabs, remove the selector lever cable from the bracket and remove the selector lever cable.
Fig 12: Locating Tabs And Selector Lever Cable
G06064283Courtesy of FORD MOTOR CO.
