Parking Assist Control Module: Service and Repair

Parking Aid Module (PAM)









Removal and Installation

1. NOTE: Module configuration is only required if a new Parking Aid Module (PAM) is being installed.

Upload the PAM configuration information to the scan tool. For additional information, refer to Programmable Module Installation (PMI) in Information Bus. Programming and Relearning

2. Remove the package tray trim panel.

3. Disconnect the PAM electrical connectors.

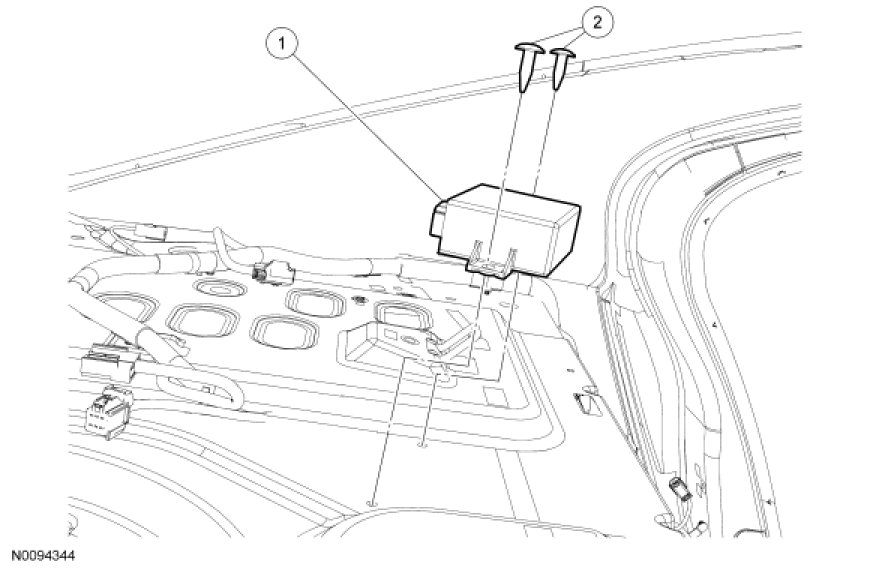

4. Remove the push pins and the PAM.

5. To install, reverse the removal procedure.
- Download the PAM configuration information.
