ABS Module DTC Chart




Anti-Lock Control

DTC Charts

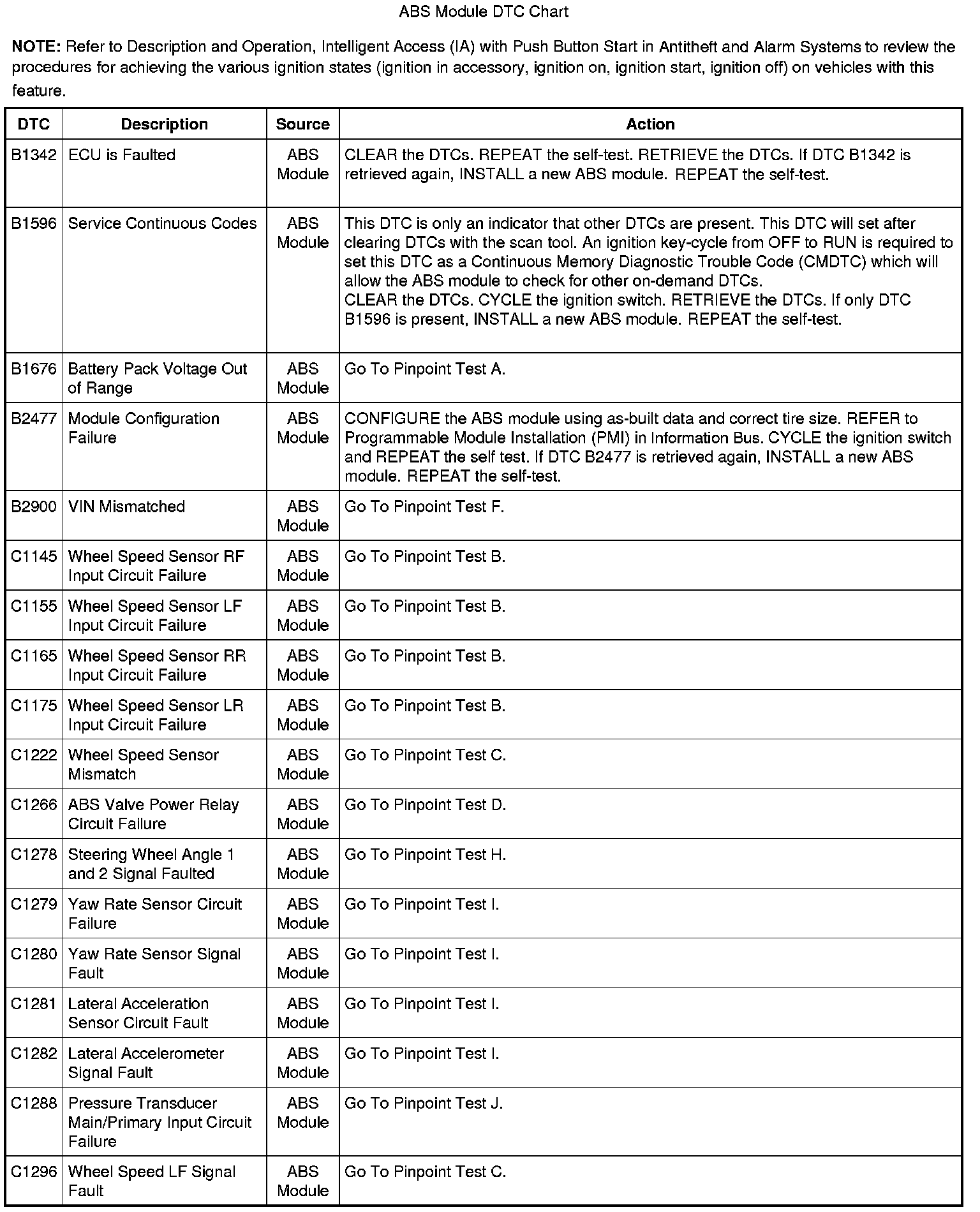

B1342-B2900 / C1145-C1296:

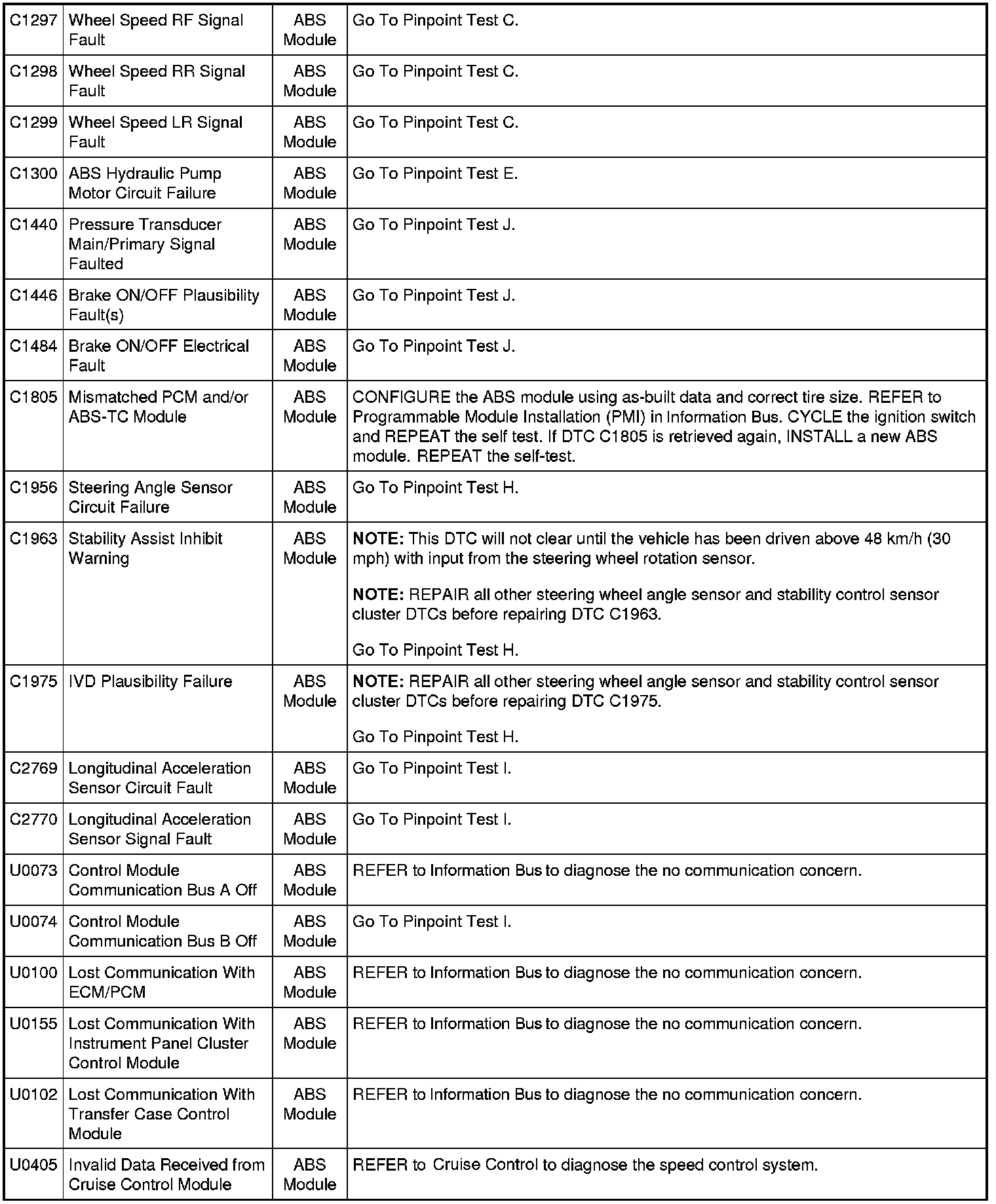

C1297-C2770 / U0073-U0405:





U2023-U2515:
