Heated Seat Module - Rear Seat

HEATED SEAT MODULE - REAR SEAT







Removal and Installation
1. Remove the rear seat backrest.

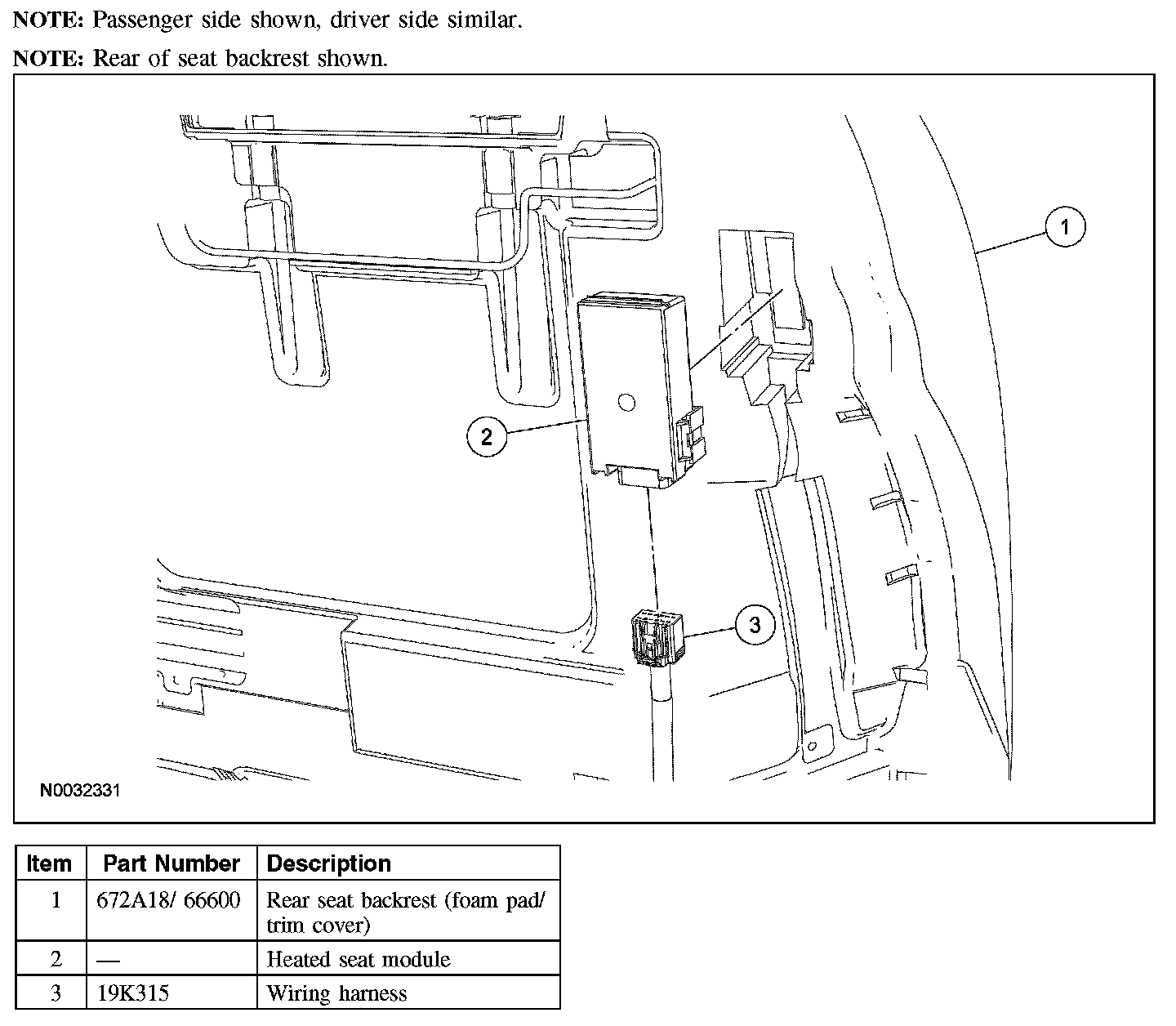

2. Disconnect the electrical connector and remove the rear heated seat module from the hook-and-loop strip.
3. To install, reverse the removal procedure.
4. Install the rear seat backrest.
