Right Power Seat Switch Connector

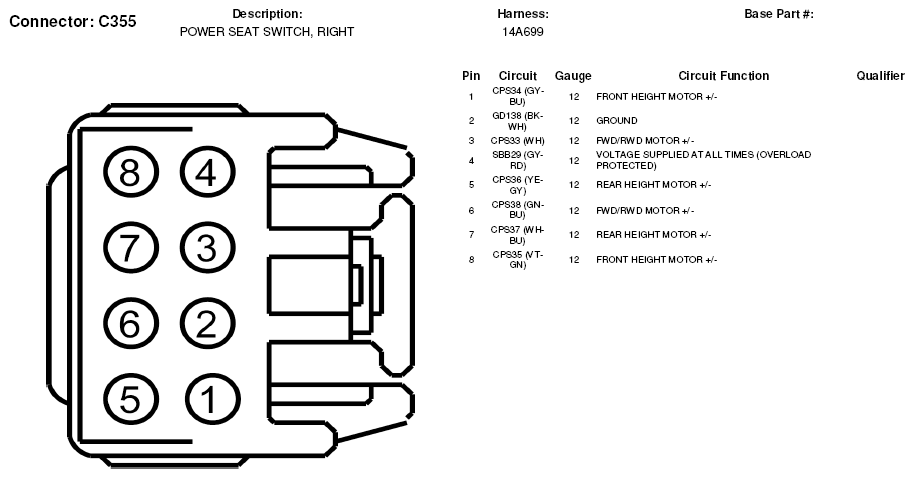

Fig 1: Right Power Seat Switch Connector End View (C355)
G05599875

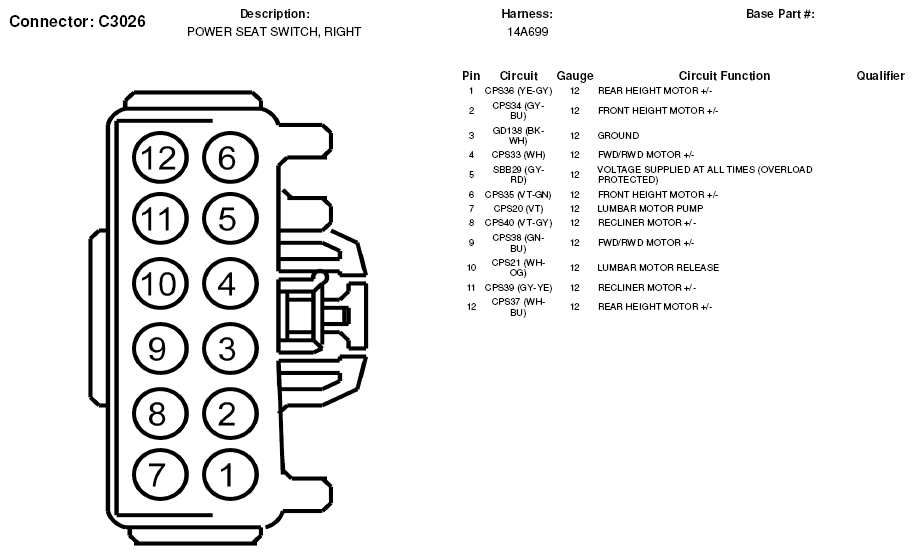

Fig 2: Right Power Seat Switch Connector End View (C3026)
G05600062
