Heated Oxygen Sensor 12 Connector
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Heated Oxygen Sensor 12 Connector

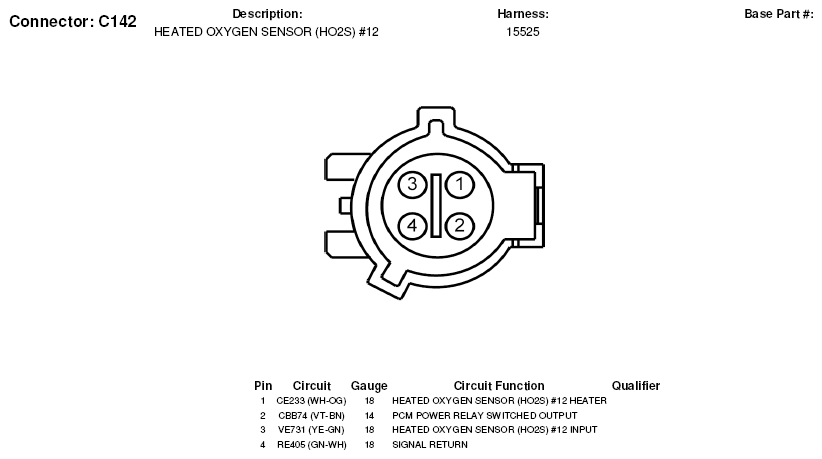

Fig 1: Heated Oxygen Sensor 12 Connector End View (C142)
