ABS Sensor Block: Service and Repair

Stability Control Sensor Cluster





Removal and Installation

NOTE: The lateral and longitudinal accelerometer and the roll rate sensor are located within the yaw rate sensor, stability control sensor cluster.

Vehicles with floor shift
1. Remove the front floor console. For additional information, refer to Console.
2. Remove the 4 bolts and the bracket.
^ To install:
- Tighten the upper bolts to 9 Nm (80 lb-in).
- Tighten the lower bolts to 40 Nm (30 lb-ft).





Vehicles with column shift
3. Remove the stability control sensor cover.

All vehicles

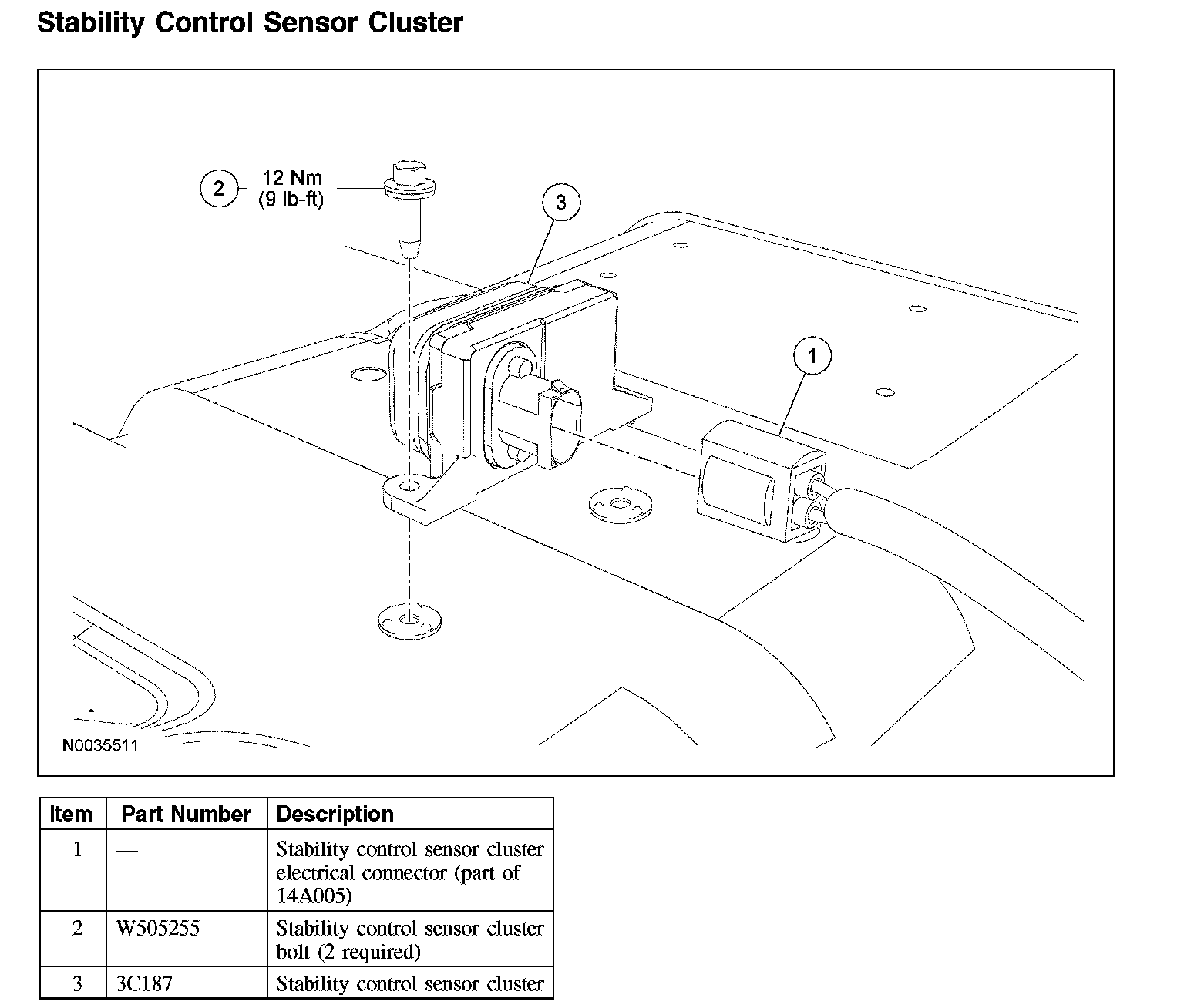

4. Disconnect the stability control sensor cluster electrical connector.
5. Remove the 2 bolts and the stability control sensor cluster.
^ To install, tighten to 12 Nm (9 lb-ft).
6. To install, reverse the removal procedure.
