OEM Connector End Views - F-150 & Mark LT
>>
Connector Views
>>
Powertrain Control Module Connectors
>>
Legend Powertrain Control Module Connector End View - C175B
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Legend Powertrain Control Module Connector End View - C175B

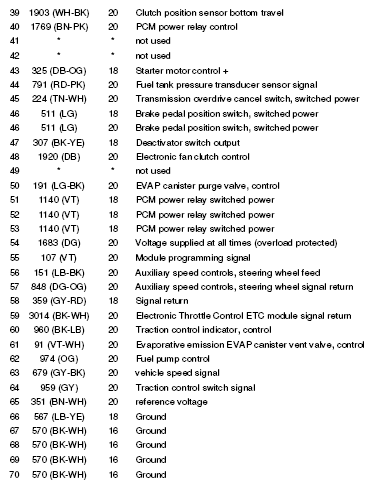

Fig 1: Legend Powertrain Control Module Connector End View (C175B)
Courtesy of FORD MOTOR CO.
