Audio Control Module Connector End View - C290B

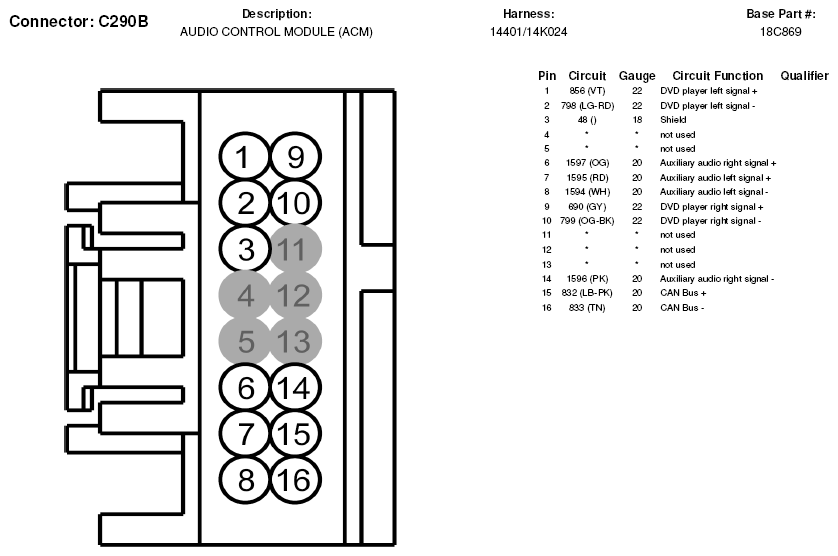

Fig 1: Audio Control Module Connector End View (C290B)
G05601549Courtesy of FORD MOTOR CO.
