Timing Cover

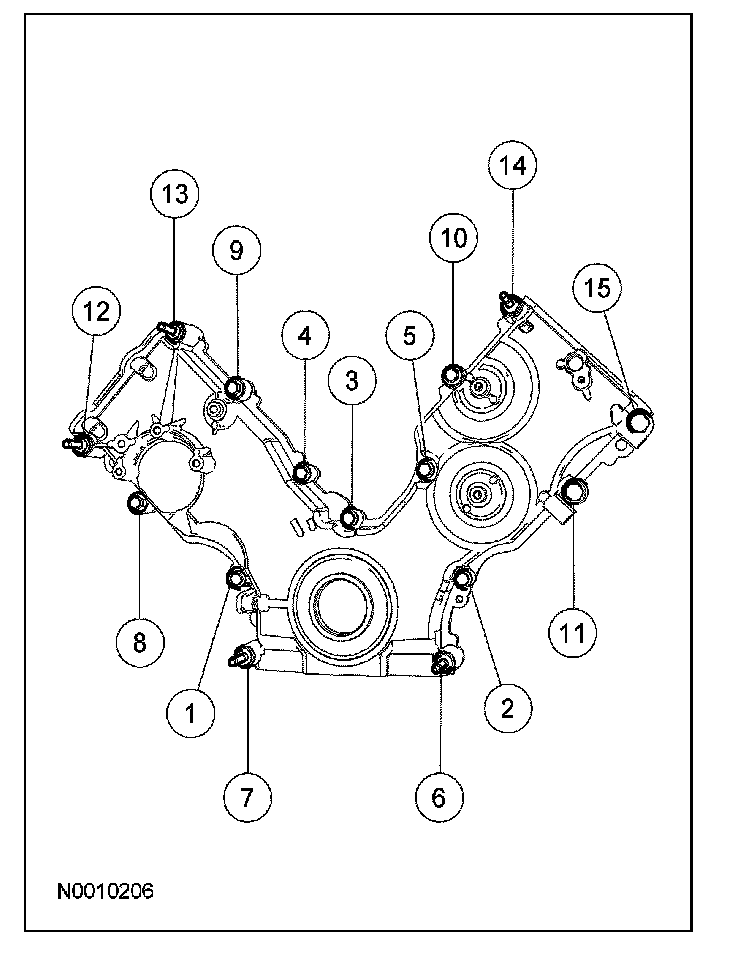

Engine Front Cover Front Fasteners
First pass: Fasteners 1 through 15 25 Nm (18 lb-ft).
Final pass: Fasteners 6 and 7 48 Nm (35 lb-ft).
Engine Front Cover Lower Fasteners
First pass 20 Nm (15 lb-ft).
Final pass Tighten an additional 60°
First pass: Fasteners 1 through 15 25 Nm (18 lb-ft).
Final pass: Fasteners 6 and 7 48 Nm (35 lb-ft).
Engine Front Cover Lower Fasteners
First pass 20 Nm (15 lb-ft).
Final pass Tighten an additional 60°
