Engine Temperature Sensor: Service and Repair

CYLINDER HEAD TEMPERATURE (CHT) SENSOR

add image

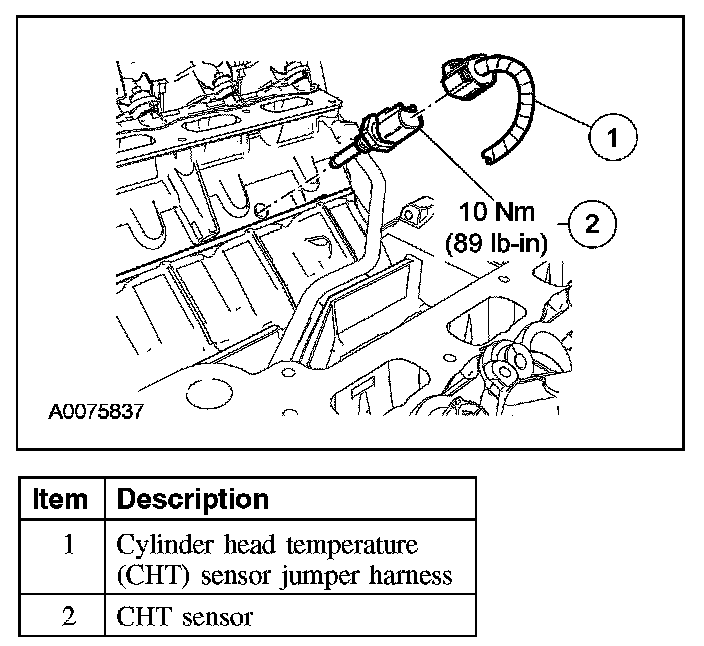

Removal and Installation

1. Remove the intake manifold.
2. Disconnect the cylinder head temperature (CHT) sensor electrical connector.
3. Remove the CHT.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
- Apply anti-seize to the threads of the CHT sensor.
