Drive Belt

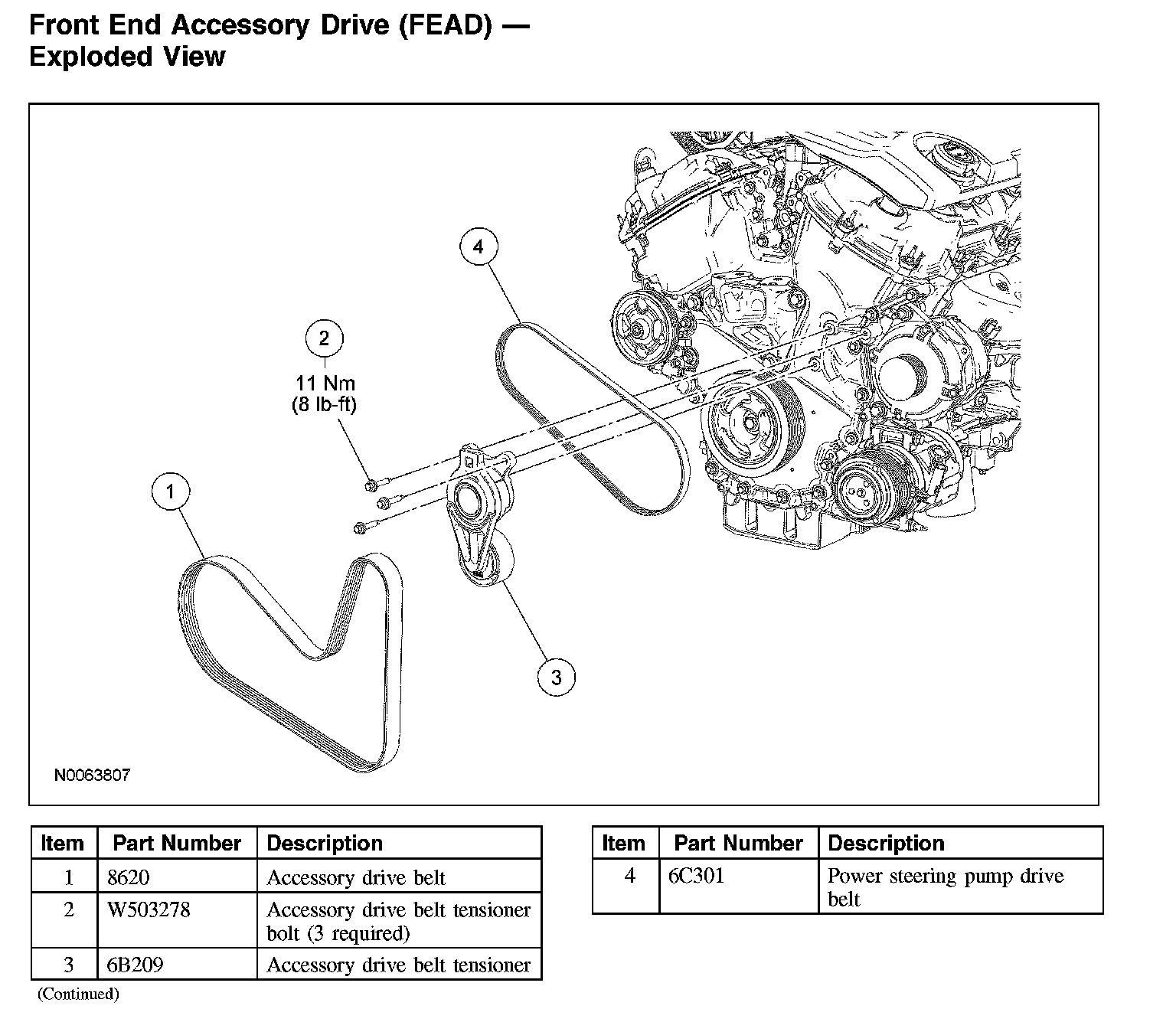

Front End Accessory Drive (FEAD) Exploded View
Front End Accessory Drive (FEAD) - Exploded View:
