Child Safety Seat Tether Anchor - LATCH: Notes

NOTE: RH shown, LH similar.

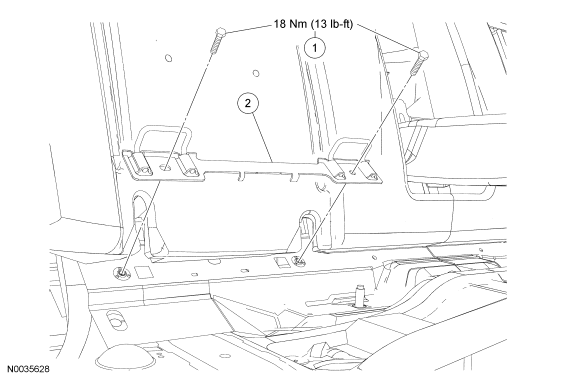

Fig 1: Exploded View Of Child Safety Seat Tether Anchor - LATCH With Torque Specifications
GF0013293Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707079 Bolts, lower anchors and tethers for children (LATCH) (2 required)
2 601B28 LATCH
