Spot Lamp Connectors

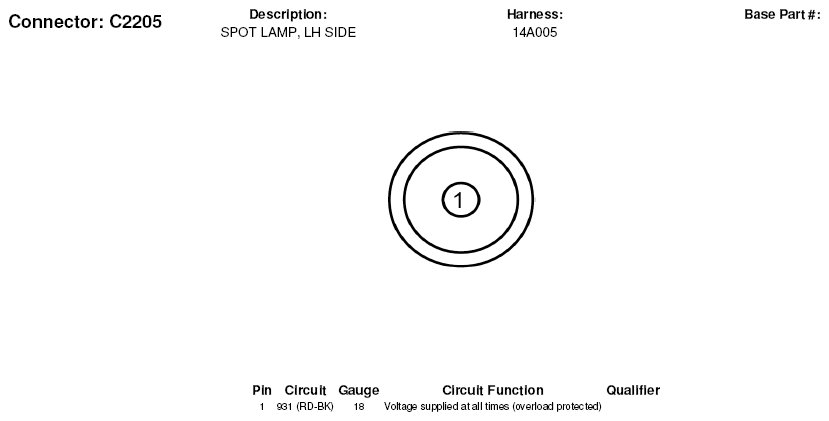

Fig 1: Spot Lamp Connector End View (C2205)
G05179317Courtesy of FORD MOTOR CO.

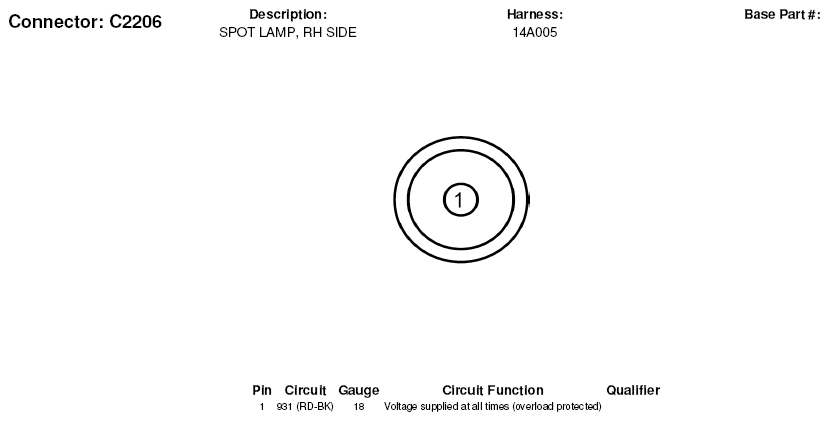

Fig 2: Spot Lamp Connector End View (C2206)
G05179318Courtesy of FORD MOTOR CO.
