Map Reading Lamps Connector

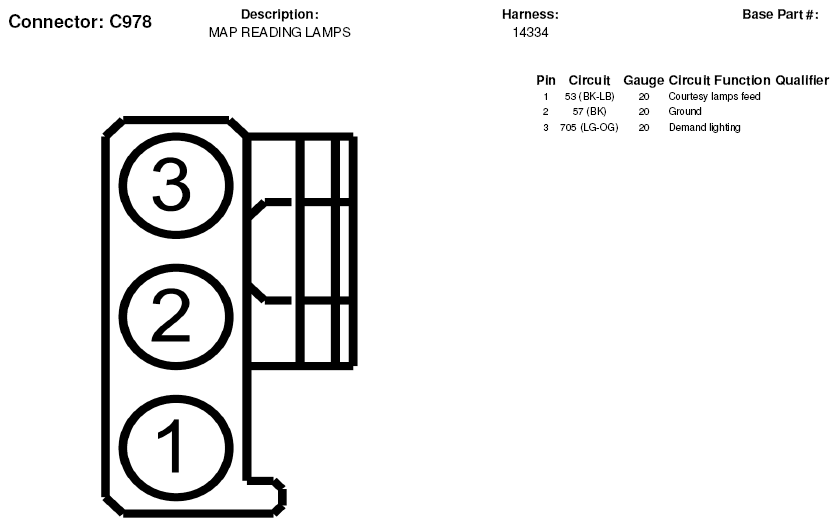

Fig 1: Map Reading Lamps Connector End View (C978)
Courtesy of FORD MOTOR CO.
