Driver Seat Lumbar Compressor Connector

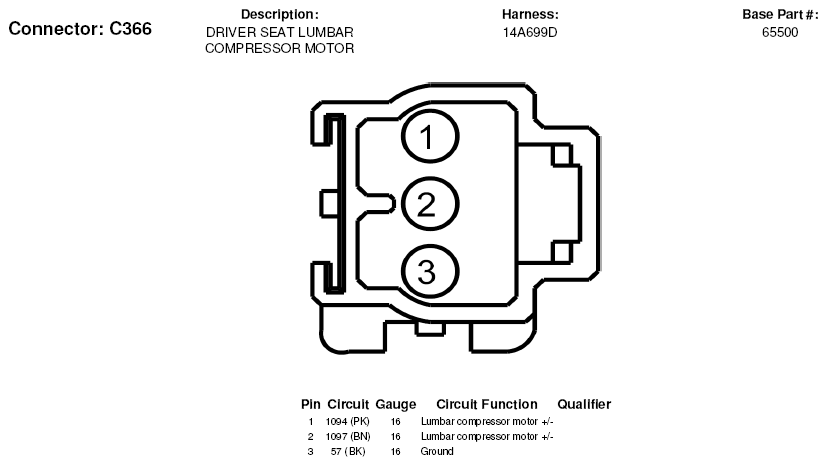

Fig 1: Driver Seat Lumbar Compressor Connector End View (C366)
G05179173Courtesy of FORD MOTOR CO.
