Traction Control Switch: Service and Repair

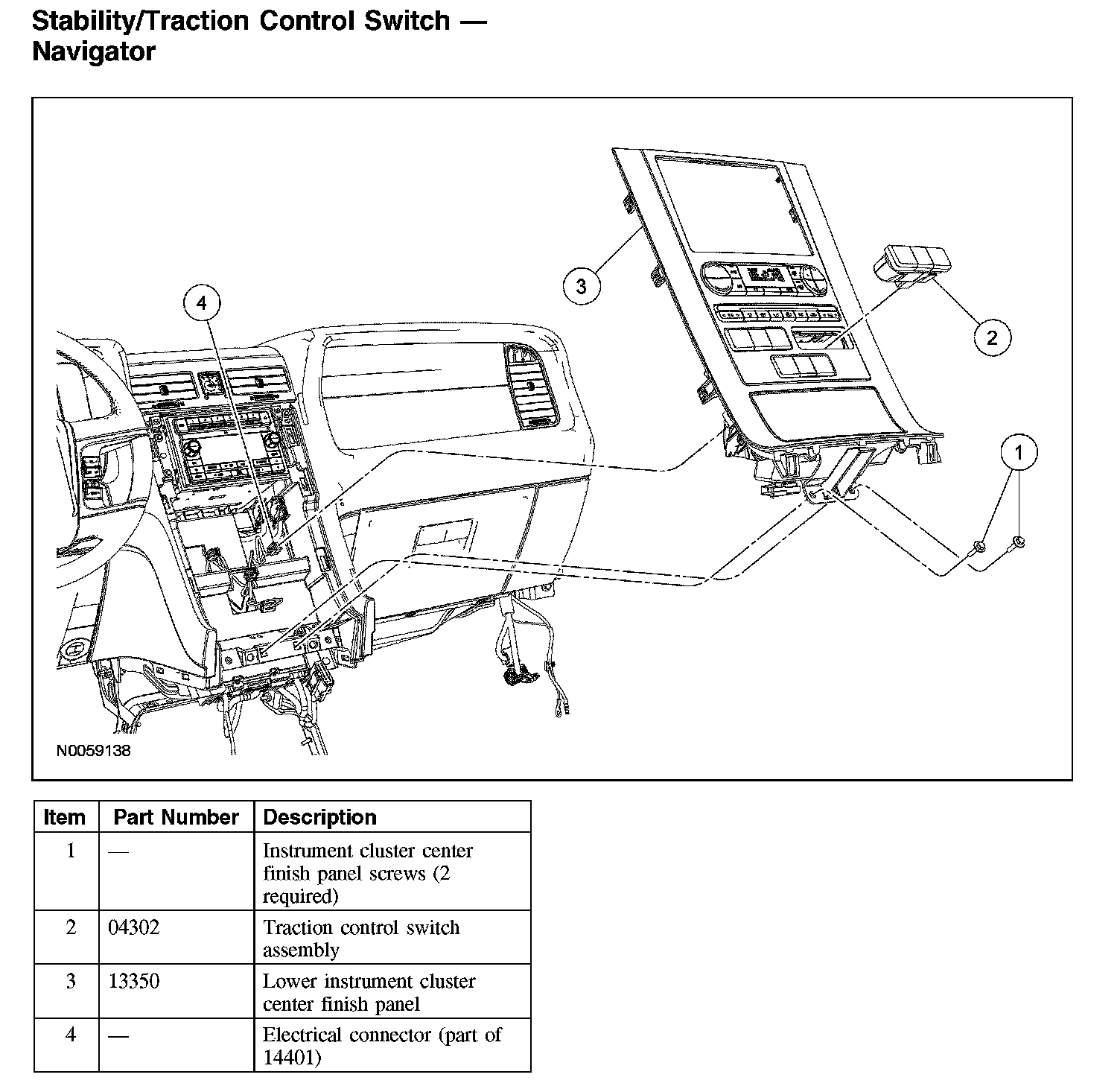

Stability/Traction Control Switch - Navigator

Stability/Traction Control Switch - Navigator:

Removal and Installation
1. Apply the parking brake and move the shift lever to NEUTRAL.
2. Disconnect the battery negative cable. For additional information, refer to Battery.
3. Remove the shift lever trim ring.





4. Remove the front floor console finish panel.
5. Remove the lower instrument cluster finish panel.
1 Remove the 2 lower instrument cluster finish panel screws.
2 Pull out on the panel to disengage the clips.
3 Disconnect the electrical connectors.
6. Depress the 4 tabs and remove the traction control switch assembly.





7. To install, reverse the removal procedure.
