Alarm System Transmitter: Service and Repair

PASSIVE ANTI-THEFT SYSTEM (PATS) TRANSCEIVER







Removal and Installation

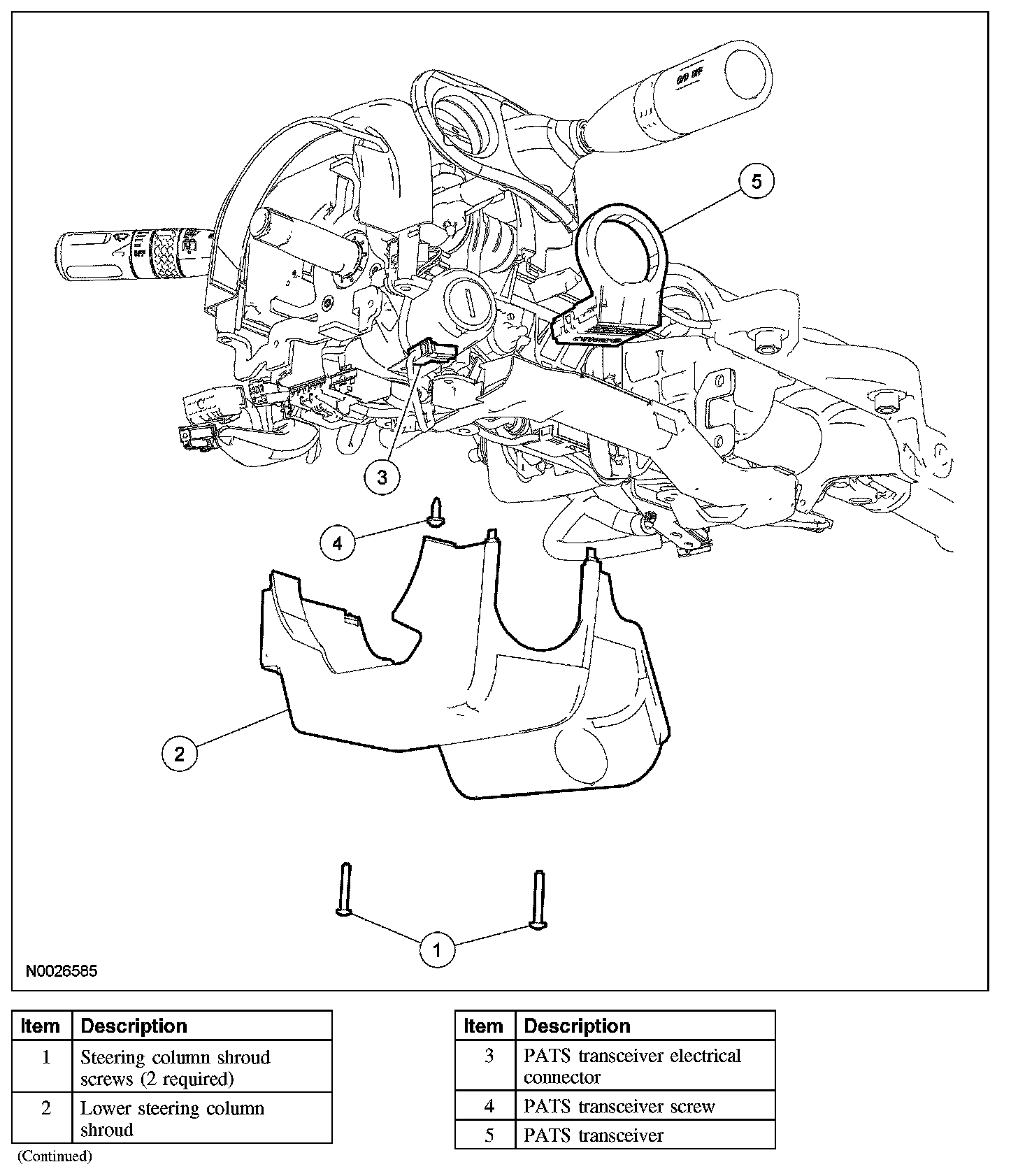

1. Remove the steering wheel.
2. Remove the 2 screws and the lower steering column shroud.
3. Remove the ignition lock cylinder cover.
4. Disconnect the PATS transceiver electrical connector.
5. Remove the screw and the PATS transceiver.

6. NOTE: Replacement of the PATS transceiver does not require the PATS keys to be programmed into the instrument cluster again.

To install, reverse the removal procedure.
