Turn Lamp Connector

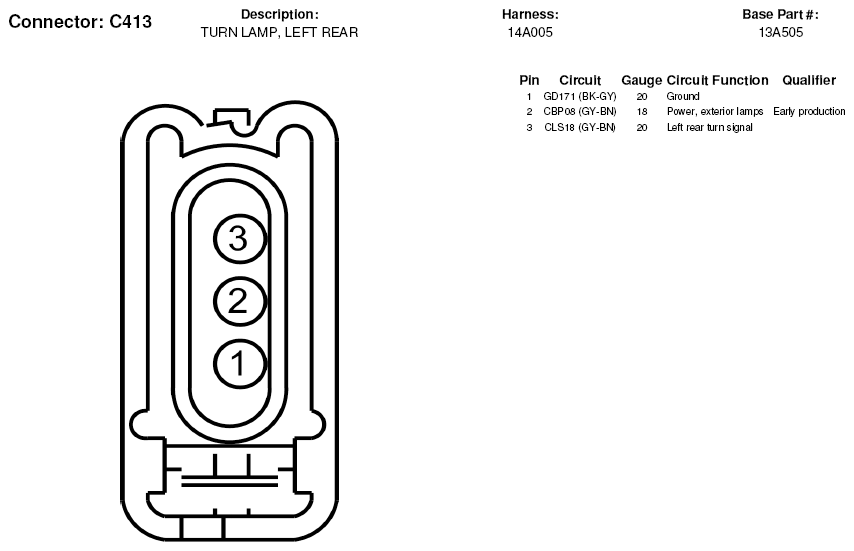

Fig 1: Turn Lamp Connector End View (C413)
G05180677Courtesy of FORD MOTOR CO.
Fig 2: Turn Lamp Connector End View (C416)
G05180682Courtesy of FORD MOTOR CO.
