Regular Cab

VEHICLE SECURITY MODULE - REGULAR CAB







Removal and Installation

CAUTION: Prior to the removal of the vehicle security module, it is necessary to upload the module configuration information to the diagnostic tool. This information needs to be downloaded into the new module once installed.

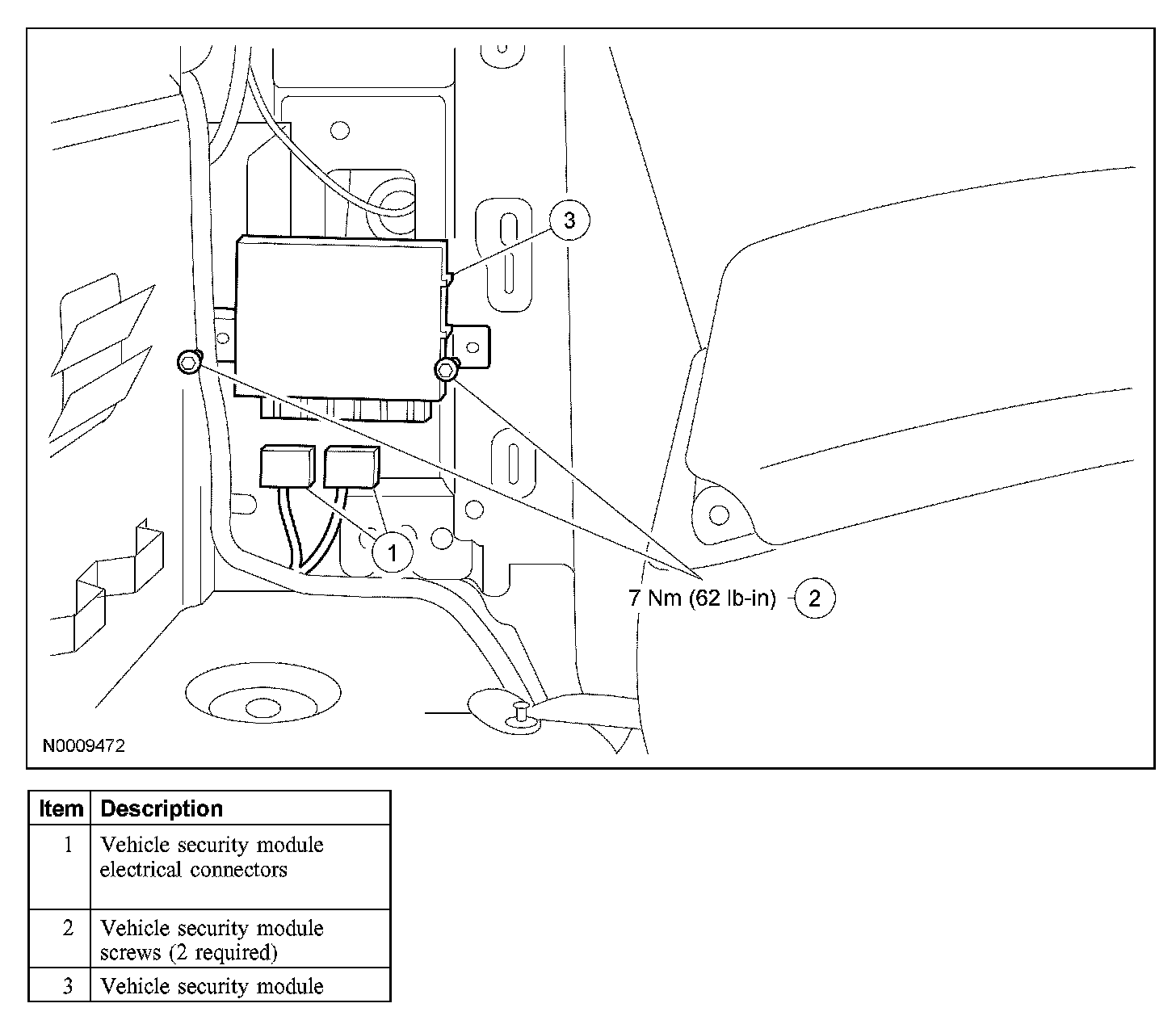

1. Remove the LH B-pillar trim panel.
2. Disconnect the 2 vehicle security module electrical connectors.
3. Remove the 2 screws and the vehicle security module.
- To install, tighten to 7 Nm (62 lb-in).

4. To install, reverse the removal procedure.
- Download the module configuration information from the diagnostic tool into the new module.
