Pinpoint Tests

PINPOINT TEST A: NO COMMUNICATION WITH THE FRONT ELECTRONIC MODULE (FEM)

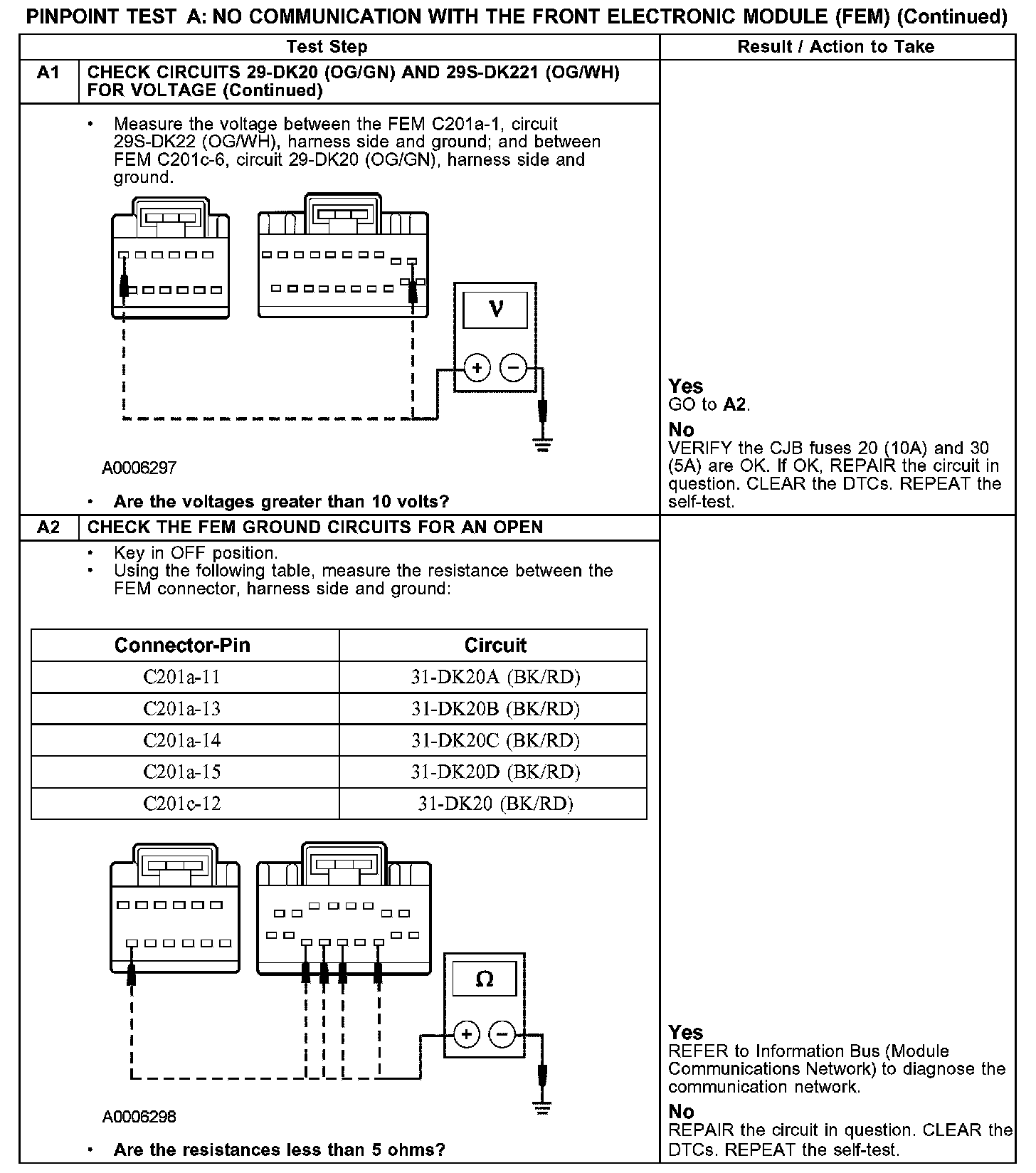

A1:

A1-A2:

Normal Operation
The FEM controls the RH exterior mirrors, the power adjustable pedals, both interior and exterior lighting active anti-theft functions, and the brake shift interlock. Power is supplied through the central junction box (CJB) circuits 29-DK20 (OG/GN), 29-DK22 (OG/WH) and grounded through circuits 31-DK20 (BK/RD), 31-DK20A (BK/RD), 31-DK20B (BK/RD), 31-DK20C (BK/RD), and 31-DK20D (BK/RD).

Possible Causes
- fuse(s)
- circuit 29-DK20 (OG/GN) open or short to ground
- circuit 29S-DK22 (OG/WH) open or short to ground
- circuit 31-DK20 (BK/RD) open
- circuit 31-DK20A (BK/RD) open
- circuit 31-DK20B (BK/RD) open
- circuit 31-DK20C (BK/RD) open
- circuit 31-DK20D (BK/RD) open
- FEM
