Removal and Installation

Remove the ignition coil-on-plugs. For additional information, refer to IGNITION COIL-ON-PLUG .

NOTE: Use compressed air to remove any foreign material from the spark plug well before removing the spark plugs.

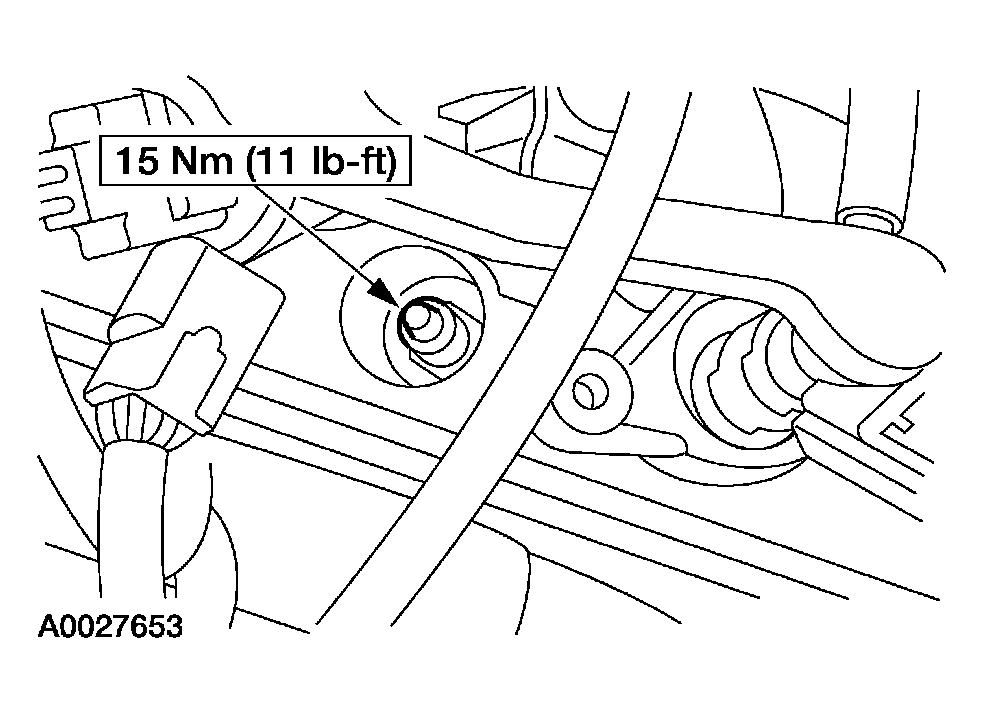

Fig 1: Removing Spark Plug

Courtesy of FORD MOTOR CO.

Remove the spark plugs.
Inspect the spark plugs. For additional information, Refer to ENGINE SYSTEM-GENERAL INFORMATION .
To install, reverse the removal procedure.

Fig 2: Adjusting Spark Plug Gap

Courtesy of FORD MOTOR CO.
