Cylinder Head: Material

MATERIAL SPECIFICATIONS

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (in Canada Motorcraft SAE 5W-20
Super Premium Motor Oil CXO-5W20-LSP12) or equivalent		 WSS-M2C930-A
Motorcraft Metal Surface Prep ZC-31 -
Silicone Gasket Remover ZC-30 -

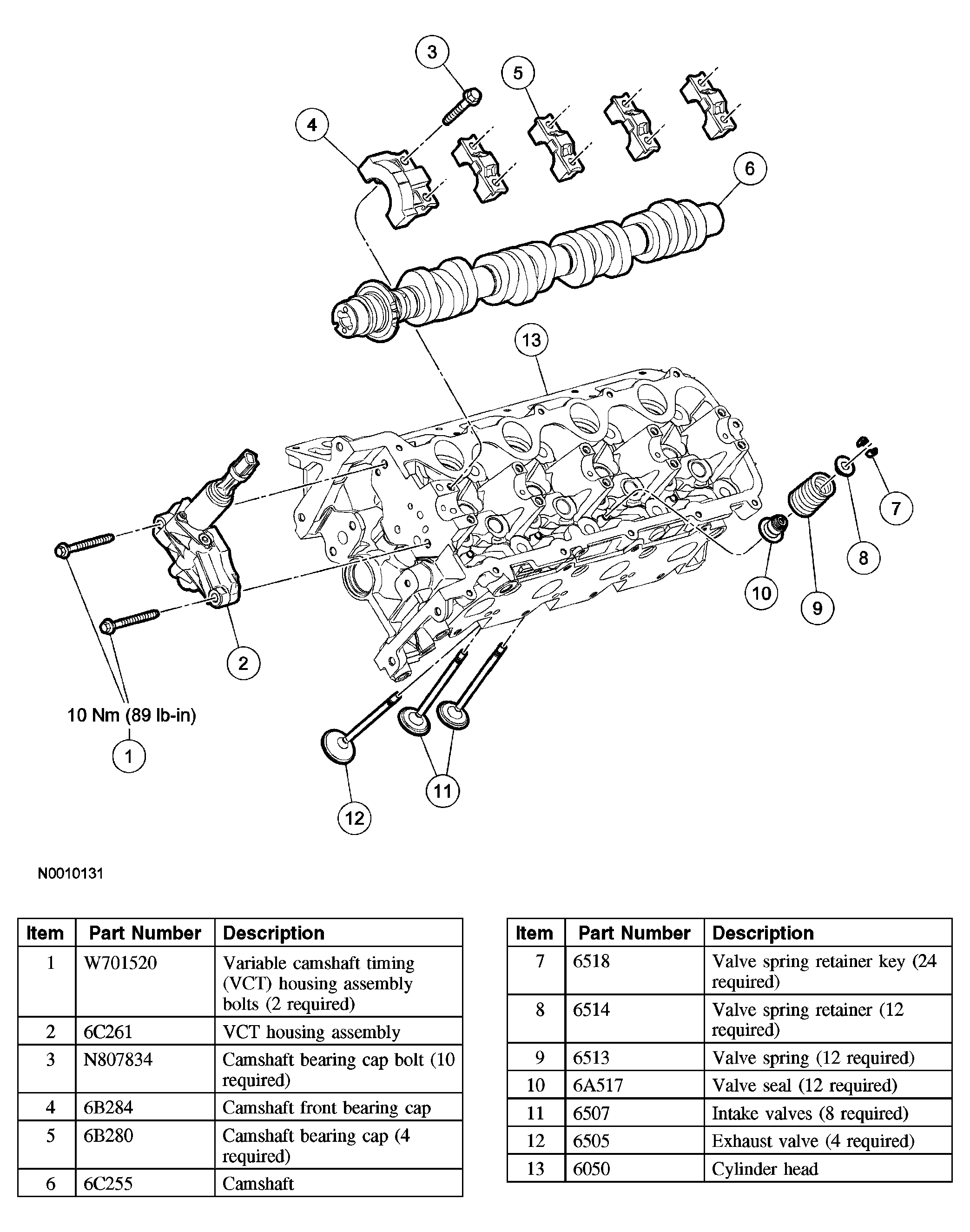

Fig 1: Exploded View Of Cylinder Head
G03933800Courtesy of FORD MOTOR CO.
