Special Tool(s)

SPECIAL TOOLS SPECIFICATIONS

G03965079
 Wrench, Fuel Tank Sender Unit 310-123

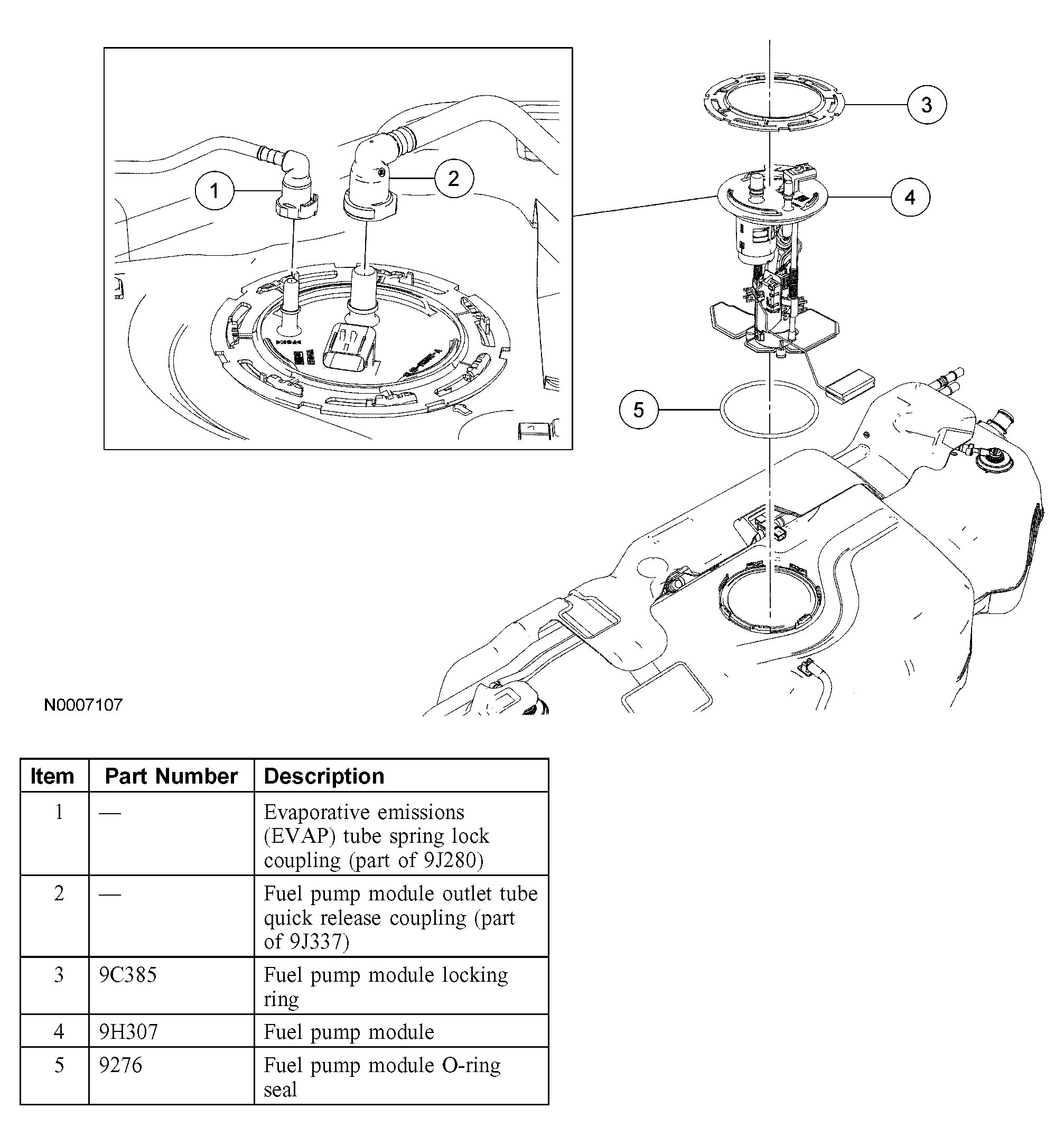

Fig 1: Exploded View Of Fuel Pump Module
G03930423Courtesy of FORD MOTOR CO.
