Connector Identification (C310b)

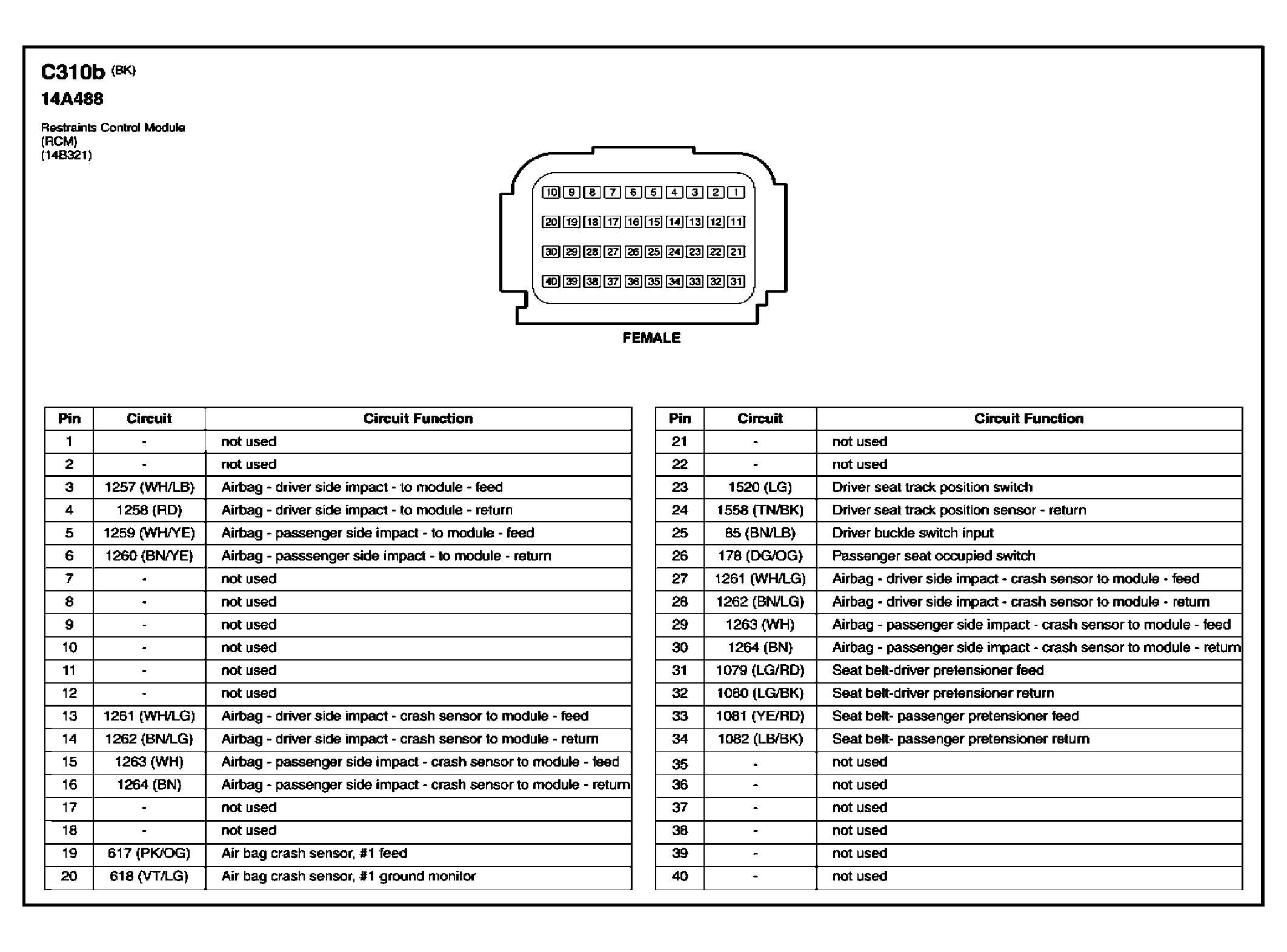

Fig 1: Restraints Control Module Connector End View (C310b)
Courtesy of FORD MOTOR CO.
