Connector Identification (C175e)

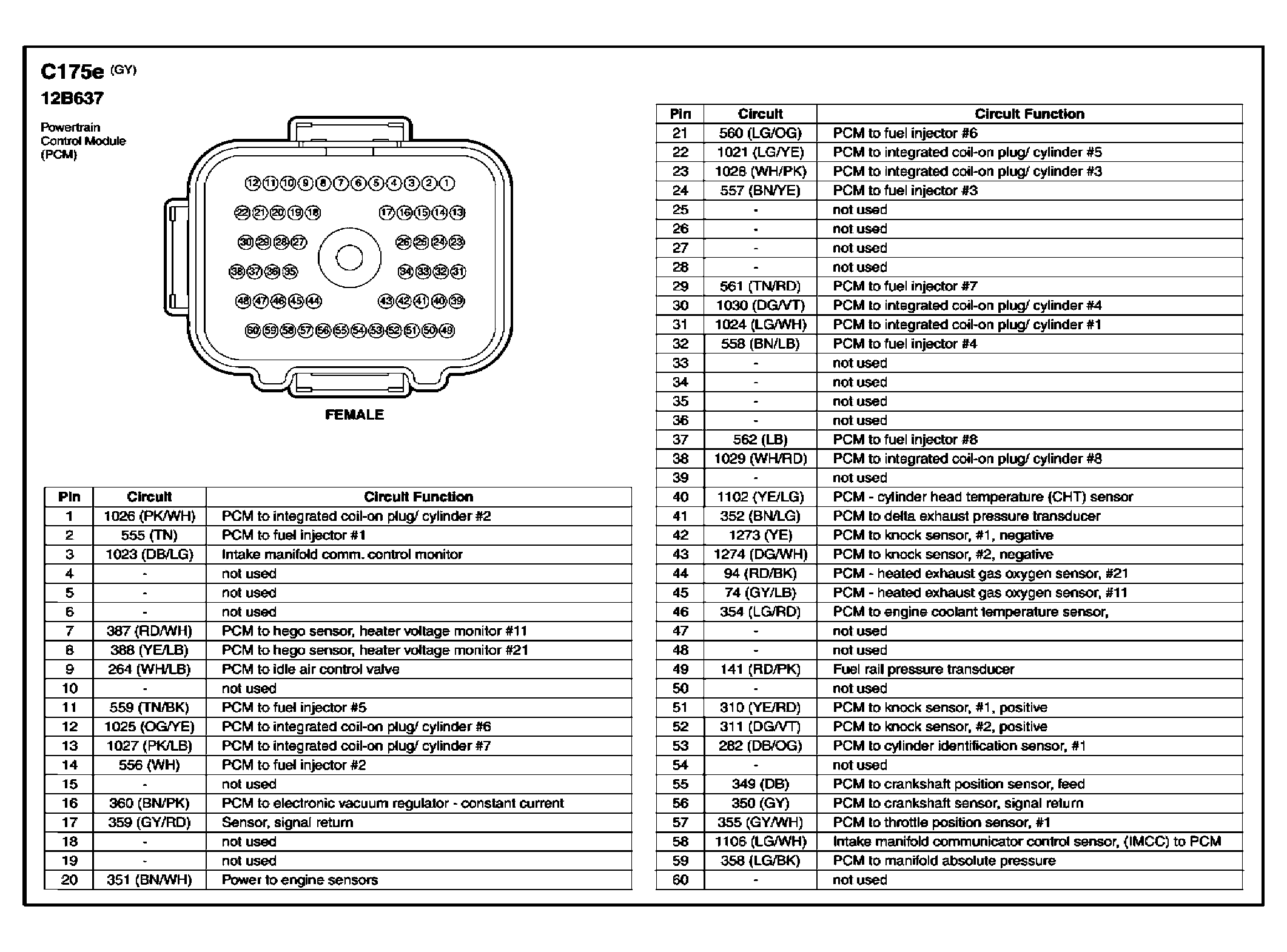

Fig 1: Powertrain Control Module (PCM) Connector End View (C175e)
G03982487Courtesy of FORD MOTOR CO.
