Compressor Manifold and Tube Assembly: Notes

MATERIALS

Item Specification
PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C) WSH-M1C231-B
Refrigerant Compressor Oil (Mineral Oil) F73Z-19577-AA (Motorcraft YN-9-A) ESH-M2C31-A2

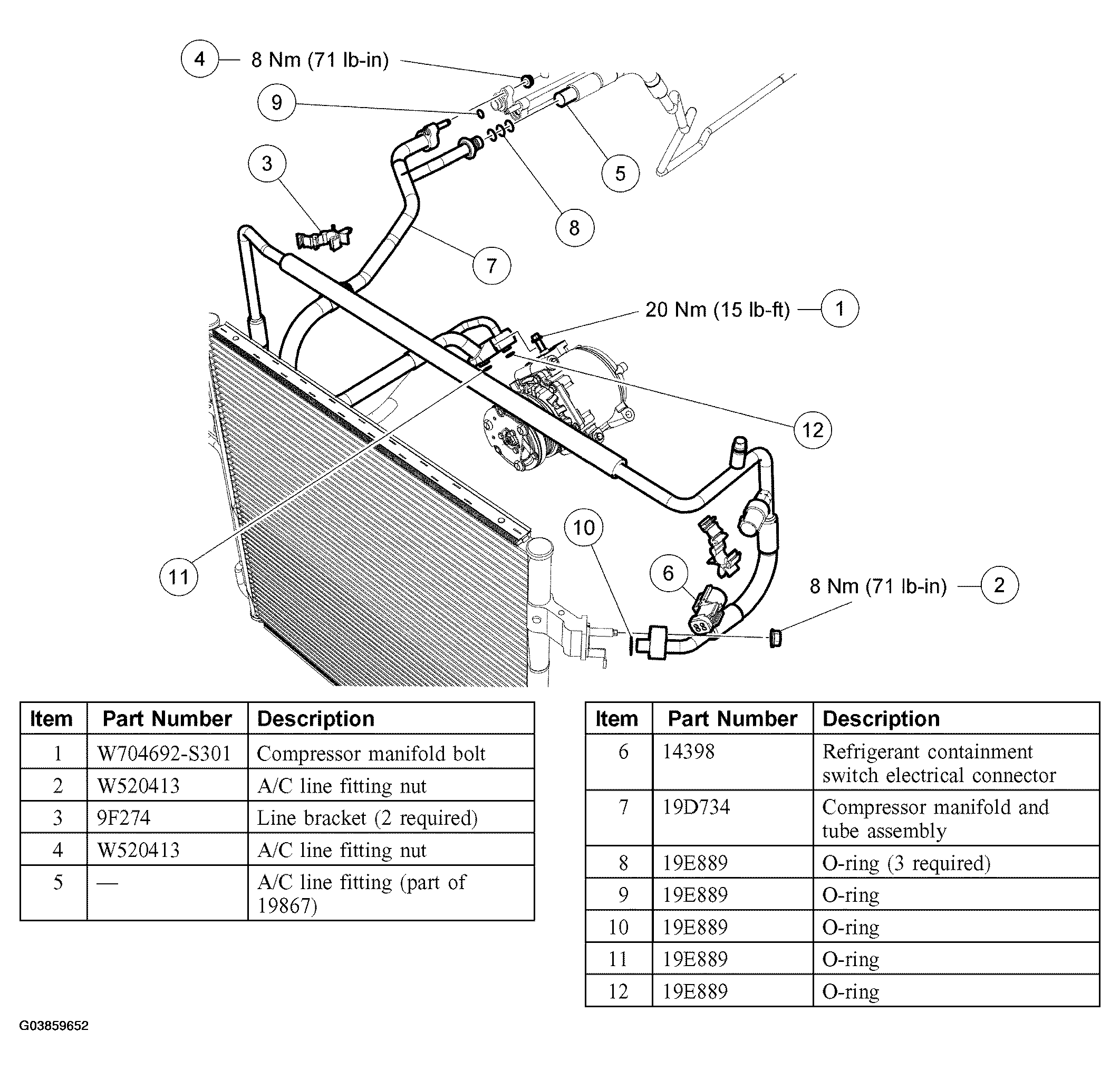

Fig 1: Compressor Manifold And Tube Assembly Replacement Components - With Torque Specification
G03859652Courtesy of FORD MOTOR CO.
