Crankshaft End Play
SPECIAL TOOL(S) CHART
| Tool No. | Illustration | Description |
|---|---|---|

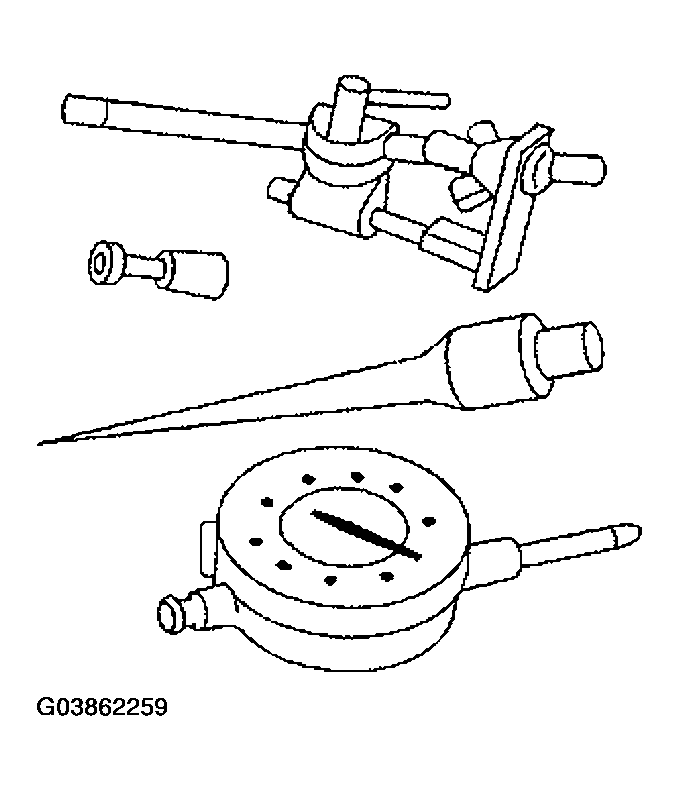

| ST1214-A | Dial Indicator with Bracketry 100-002 (TOOL-4201-C) or equivalent |

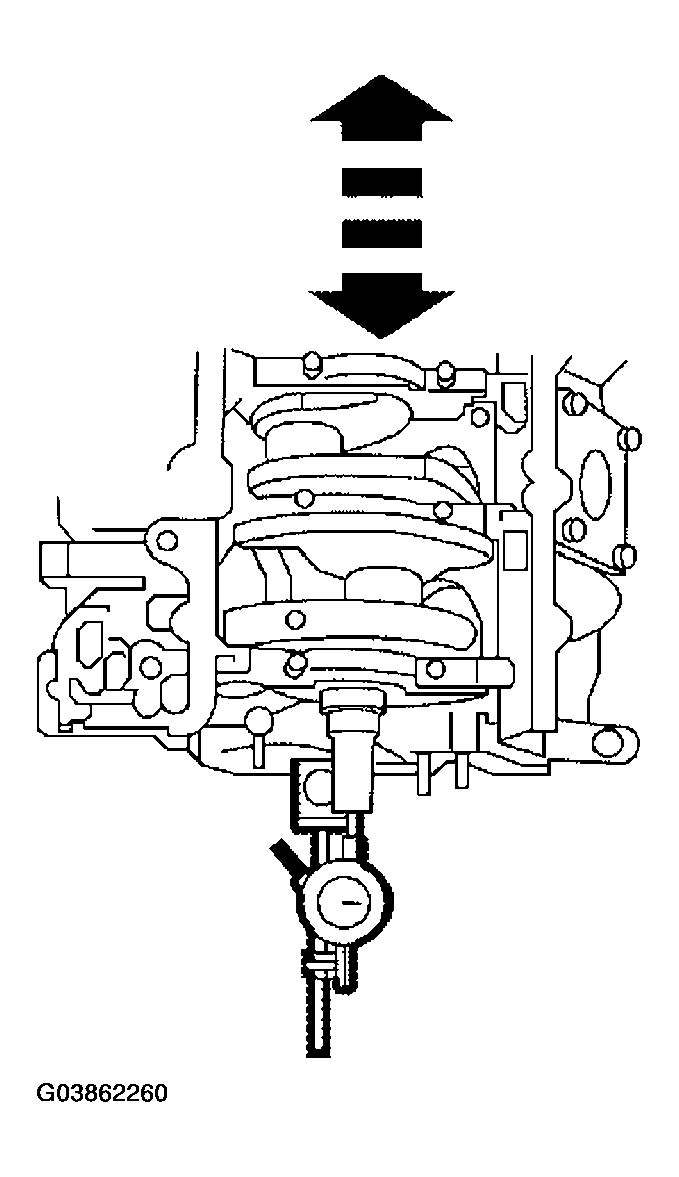

- Measure the crankshaft end play. Use the special tool to measure crankshaft end play.
- Position the crankshaft to the rear of the cylinder block.
- Zero the indicator.
- Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
- If crankshaft end play exceeds specifications, install a new crankshaft thrust washer or crankshaft thrust main bearing. Refer to the appropriate article in ENGINE for the procedure.
