Pump And Intermediate Clutch Spring And Support - Disassembled View

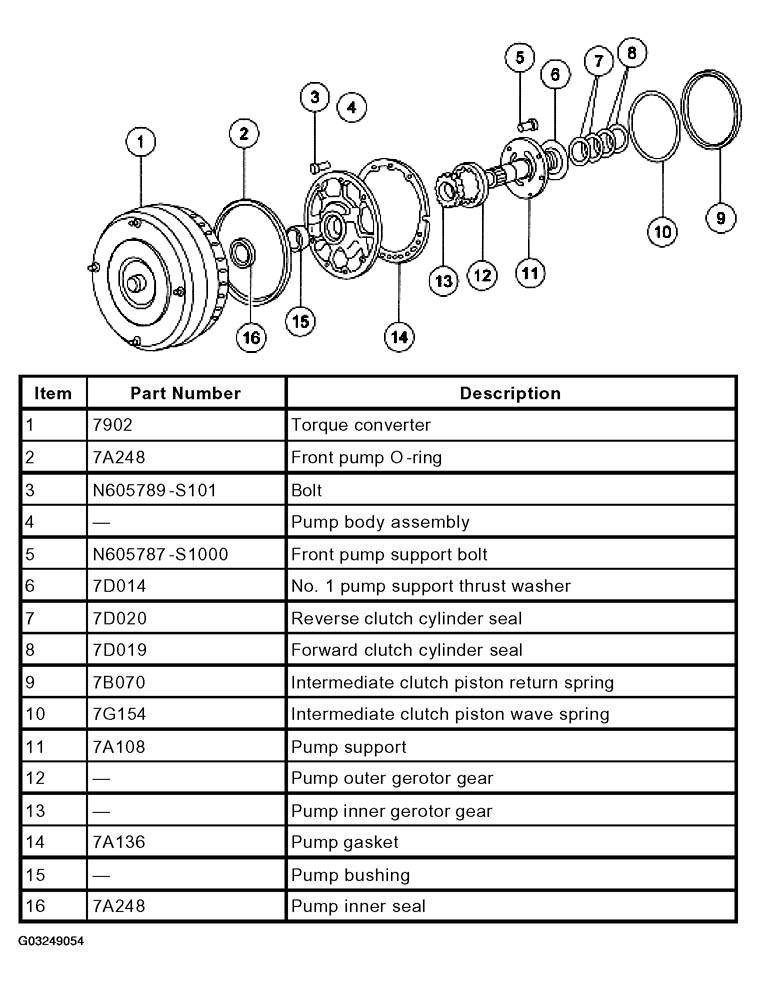

Fig 1: Pump And Intermediate Clutch Spring And Support - Disassembled View
G03249054Courtesy of FORD MOTOR CO.
