Automatic Transmission - Disassembled View

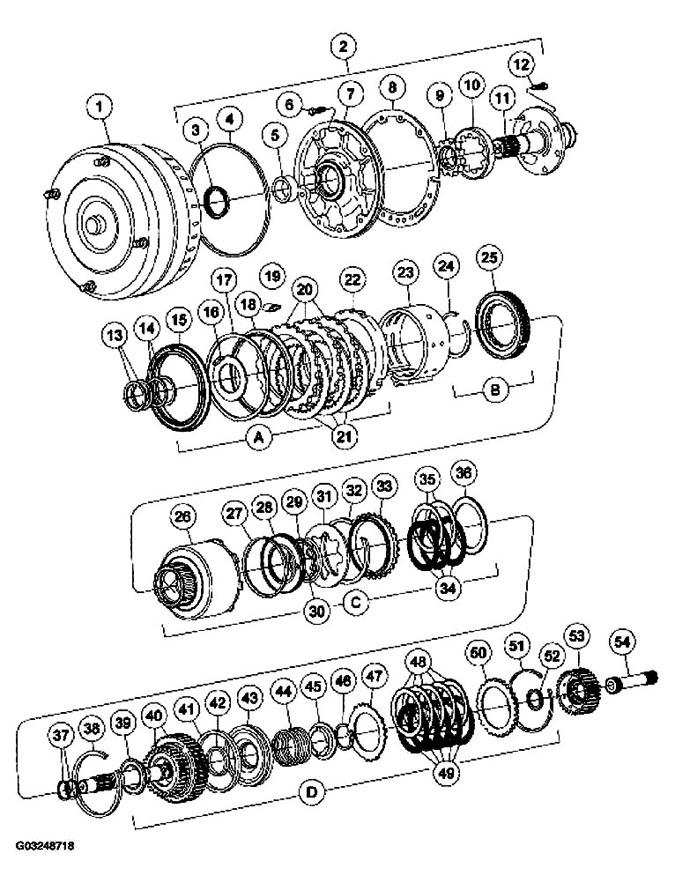

Fig 1: Automatic Transmission - Disassembled View
Courtesy of FORD MOTOR CO.

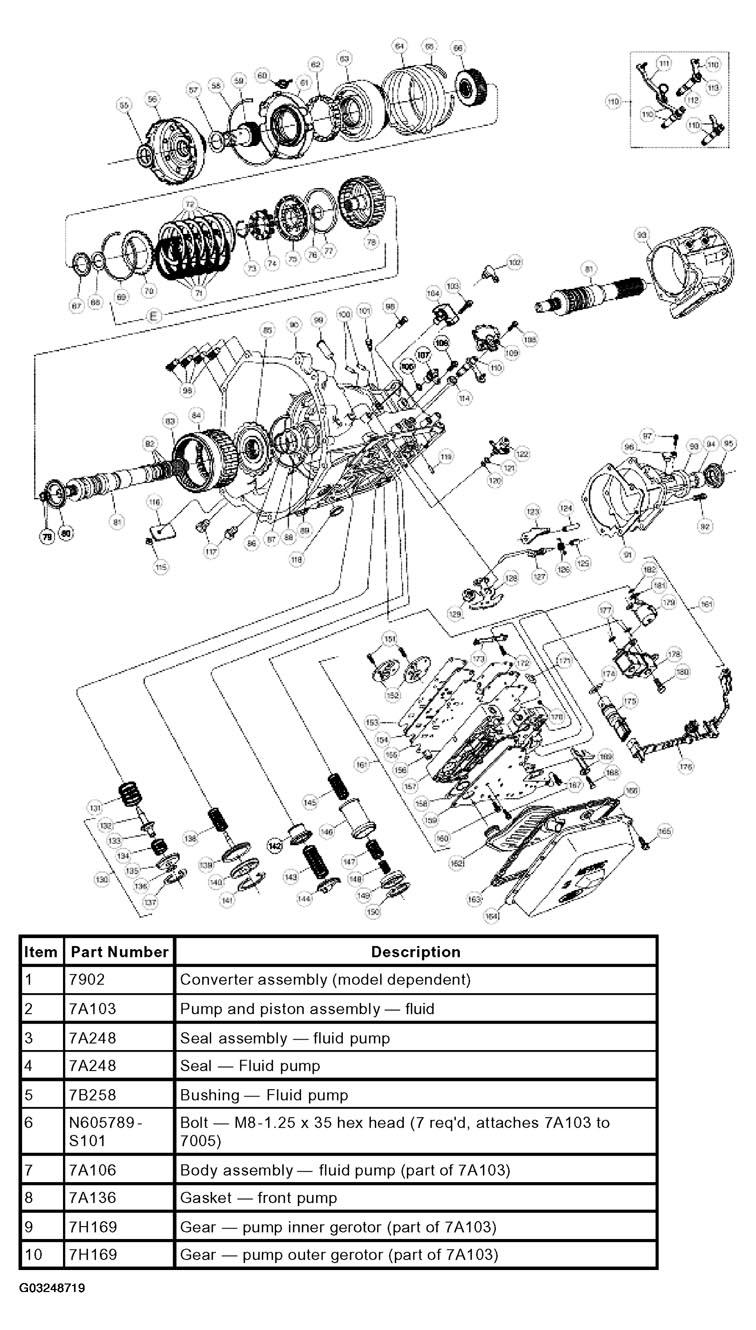

Fig 2: Automatic Transmission - Disassembled View Cont. & Legend (Items 1-10)
Courtesy of FORD MOTOR CO.

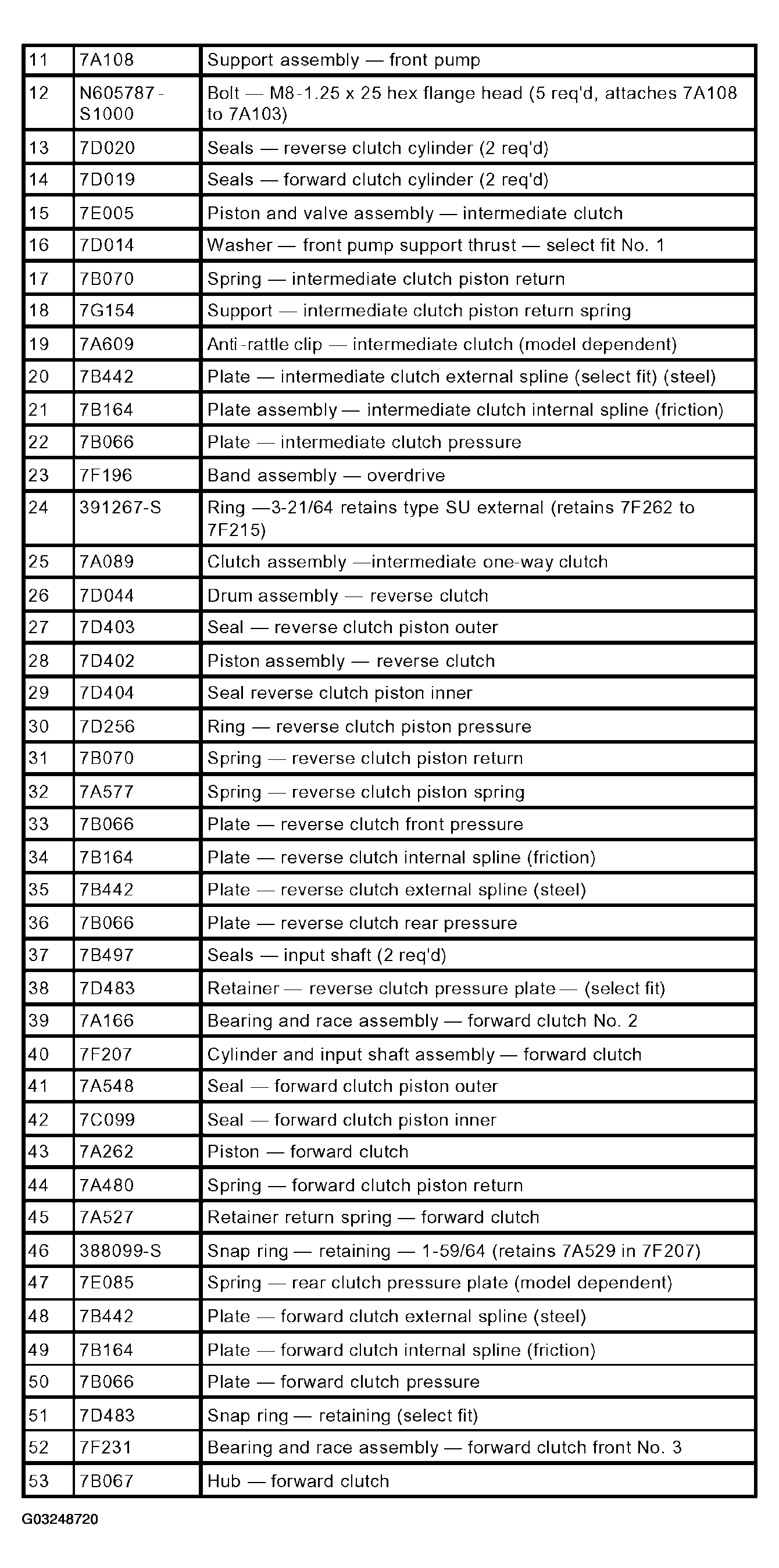

Fig 3: Automatic Transmission - Disassembled View Legend (Items 11-53)
Courtesy of FORD MOTOR CO.

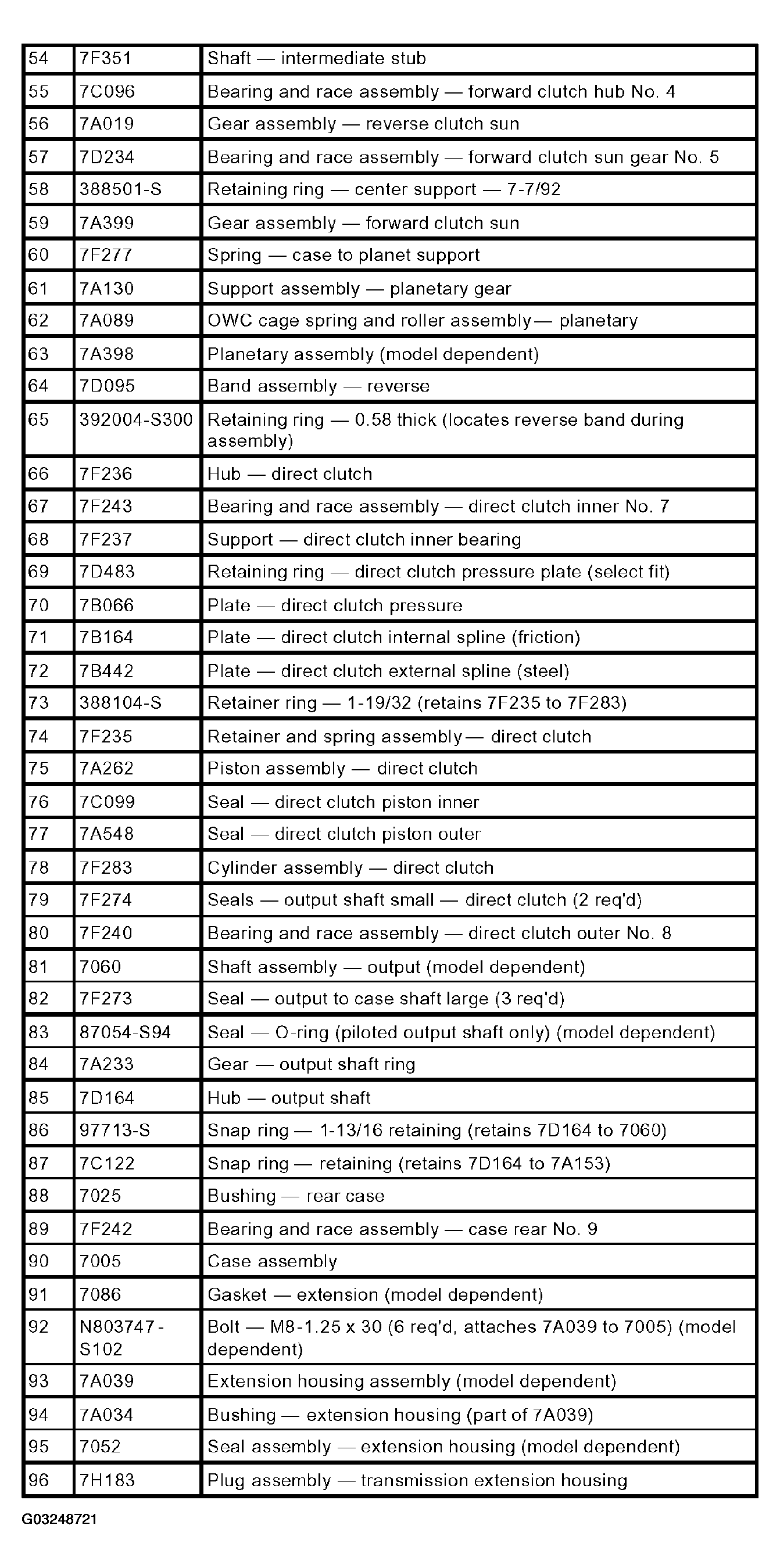

Fig 4: Automatic Transmission - Disassembled View Legend (Items 54-96)
Courtesy of FORD MOTOR CO.

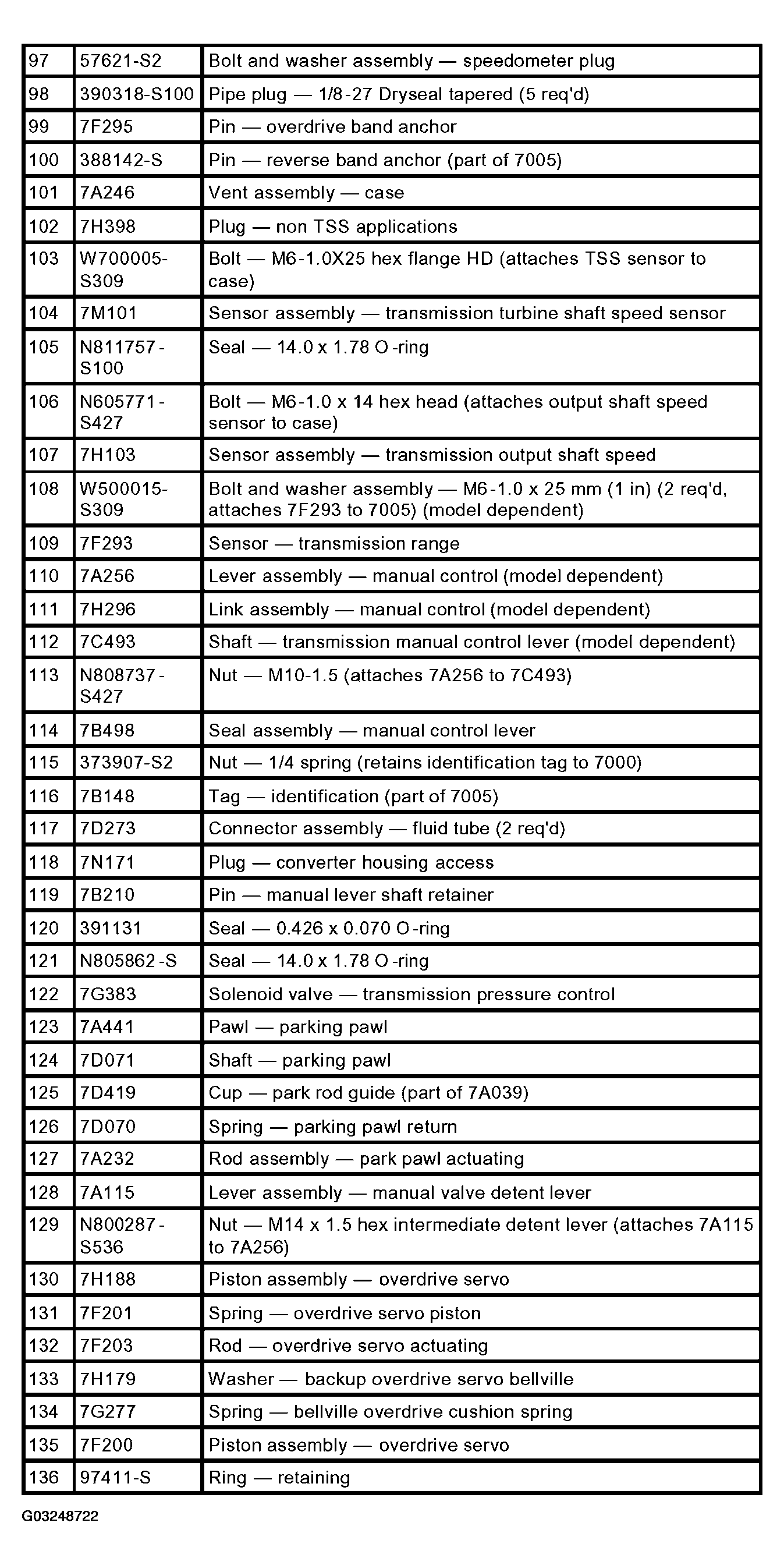

Fig 5: Automatic Transmission - Disassembled View Legend (Items 97-136)
Courtesy of FORD MOTOR CO.

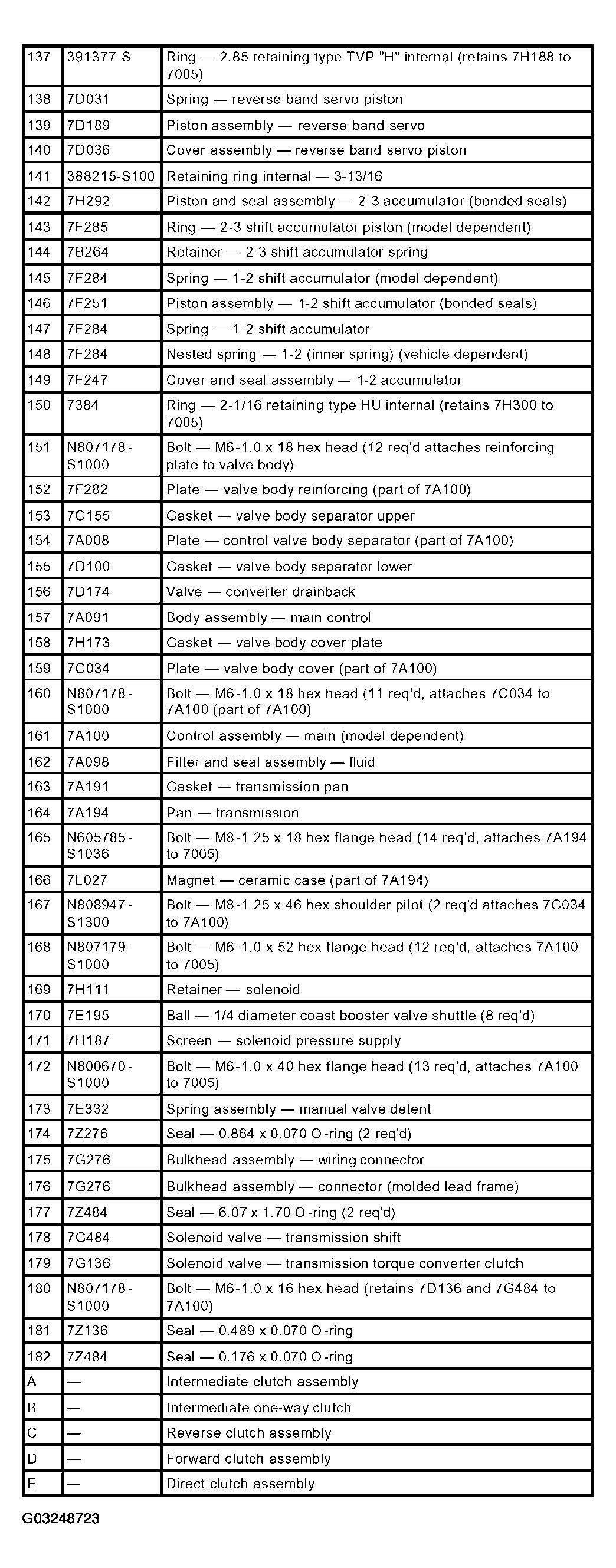

Fig 6: Automatic Transmission - Disassembled View Legend (Items 137-182, A-E)
Courtesy of FORD MOTOR CO.
