Transmission Selector Lever - Column Shift: Removal

  1. Remove the steering wheel. For additional information, refer to STEERING COLUMN .
  2. Remove the upper and lower steering column shroud.

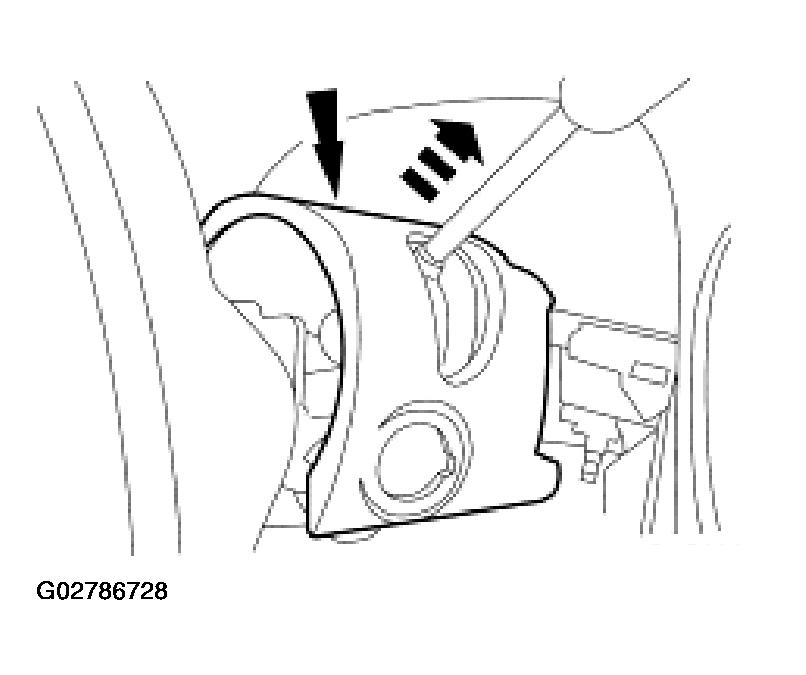

    Fig 1: Removing Upper And Lower Steering Column Shroud
    G02786728Courtesy of FORD MOTOR CO.
  3. Remove the gearshift lever.
    1. Disconnect the electrical connector.
    2. Remove and discard the gearshift lever pin.
    3. Remove the gearshift lever.

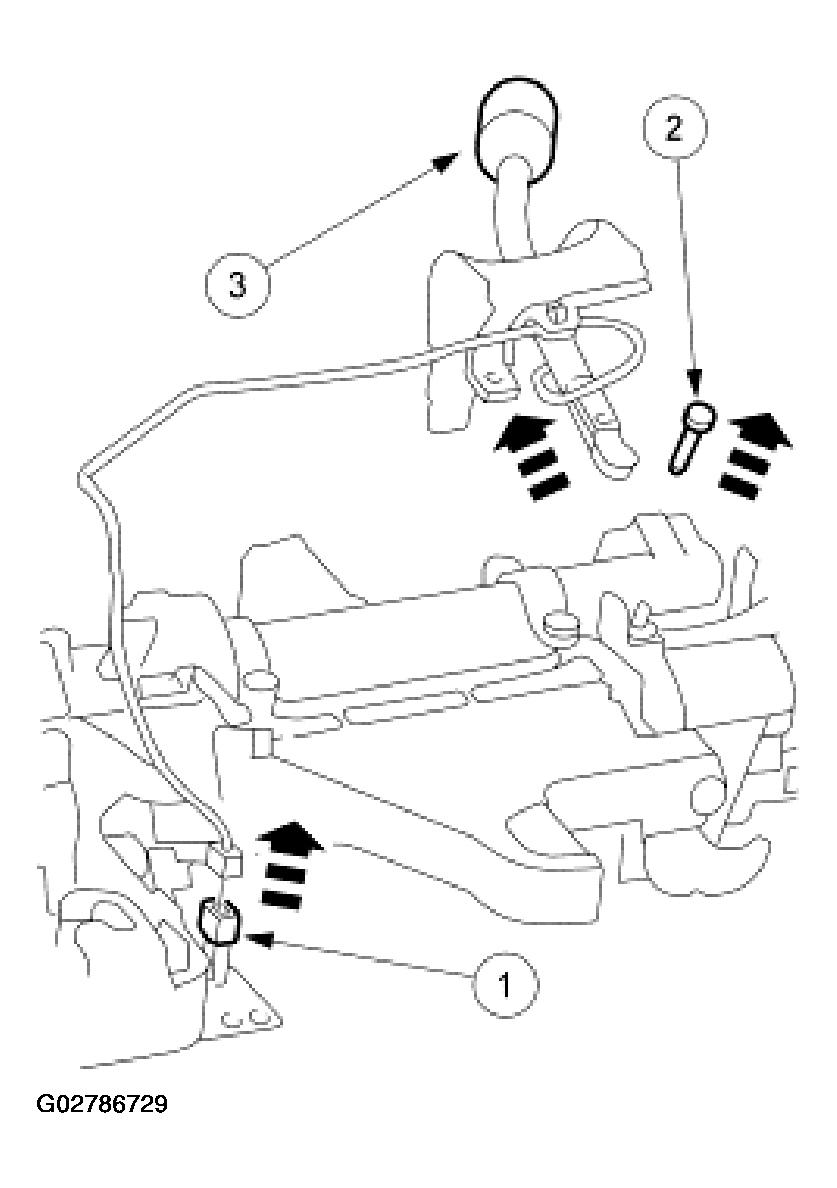

    Fig 2: Removing Gearshift Lever
    G02786729Courtesy of FORD MOTOR CO.
