Pinpoint Test A: No Communication With The 4WAS Module/Unable To Enter Self-Test

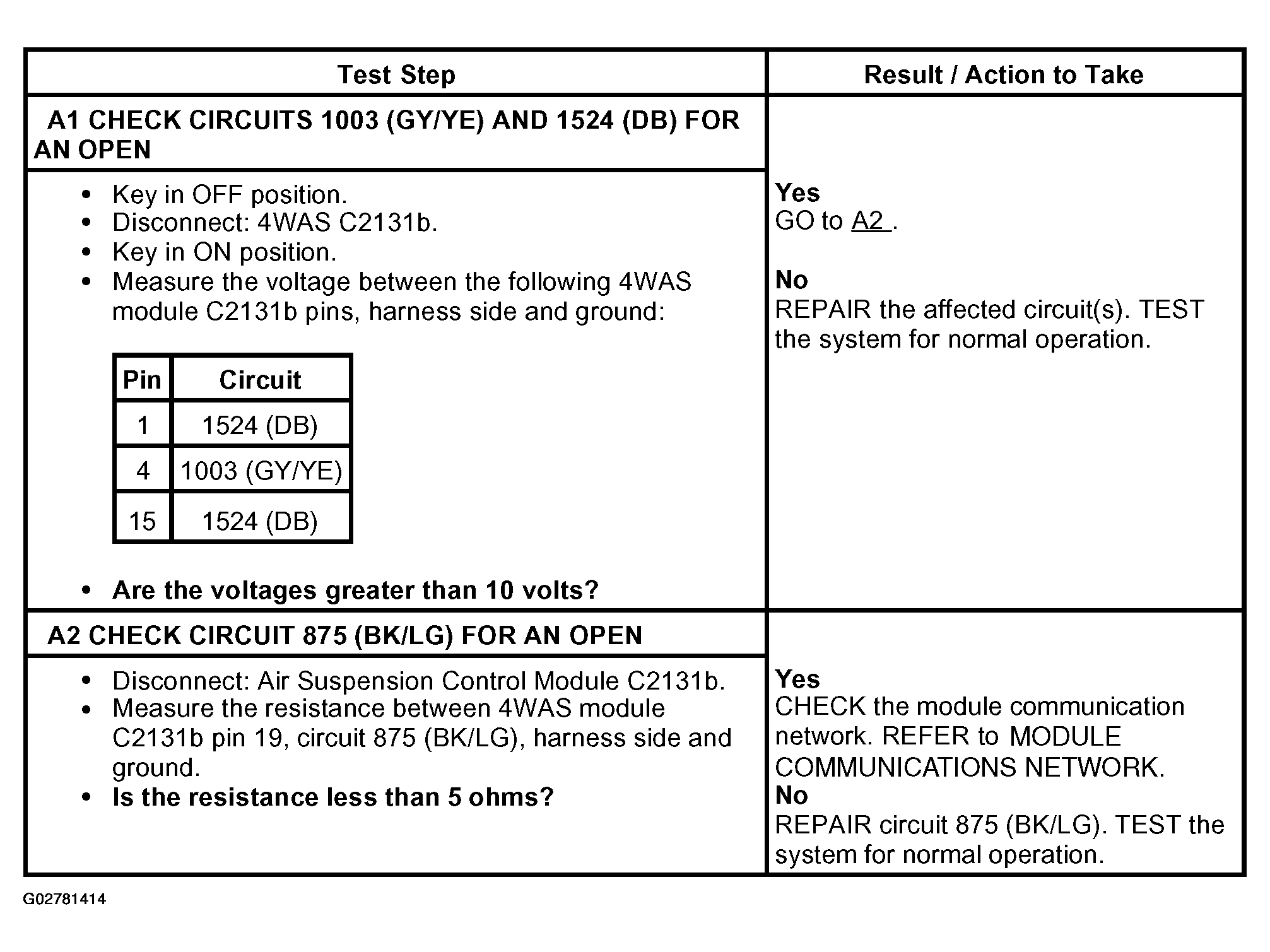

Fig 1: Pinpoint Test A: No Communication With 4WAS Module/Unable To Enter Self-Test
G02781414Courtesy of FORD MOTOR CO.
