Pinpoint Test O: The Stability Assist Cannot Be Disabled

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

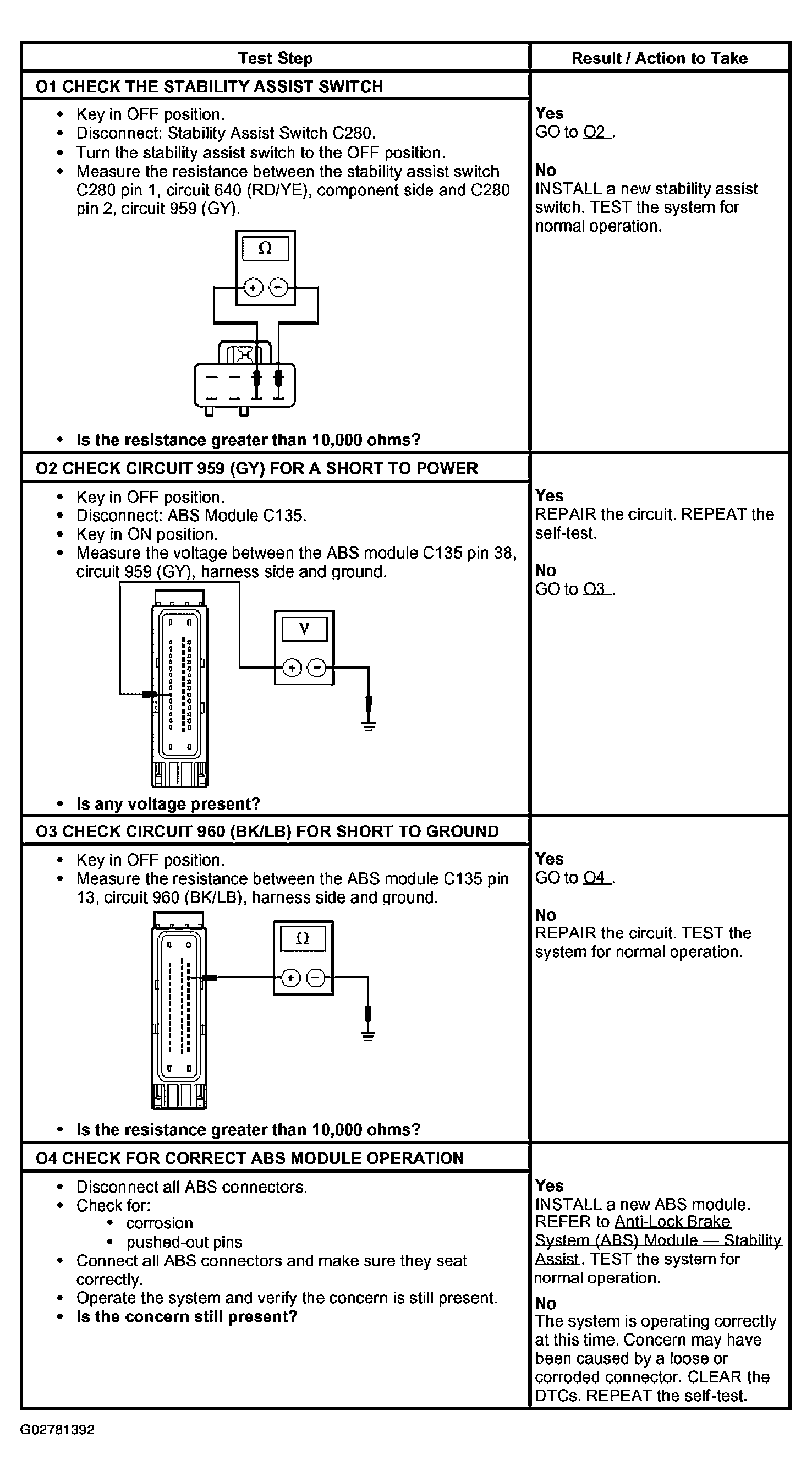

Fig 1: Pinpoint Test O: Stability Assist Cannot Be Disabled (O1 - O4)
G02781392Courtesy of FORD MOTOR CO.
