Identifying Connector (C314) (Navigator)

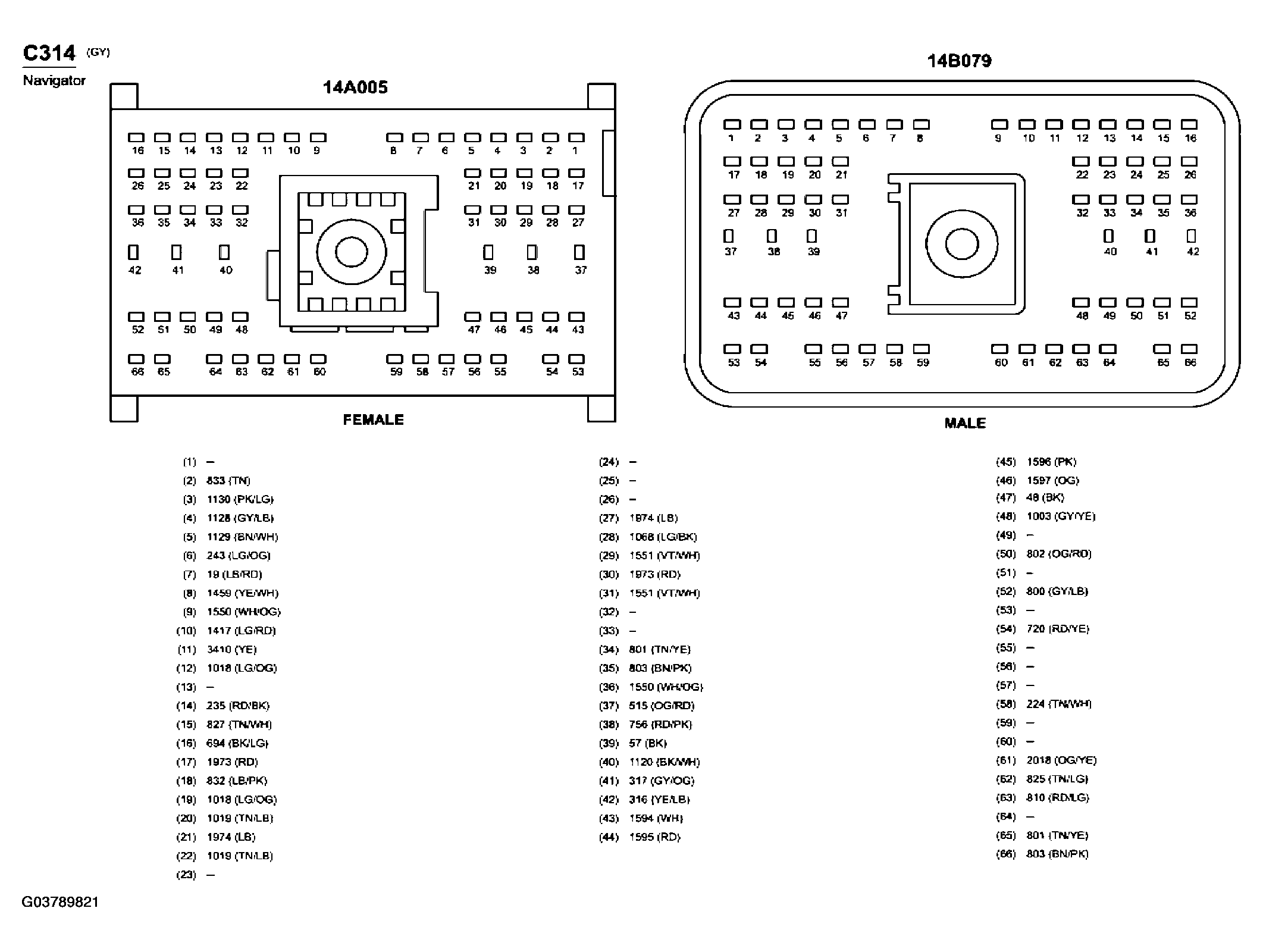

Fig 1: Inline Connector End View (C314)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
