Home >> Lincoln >> 2004 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Locations >> Splice Locations
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Splice Locations

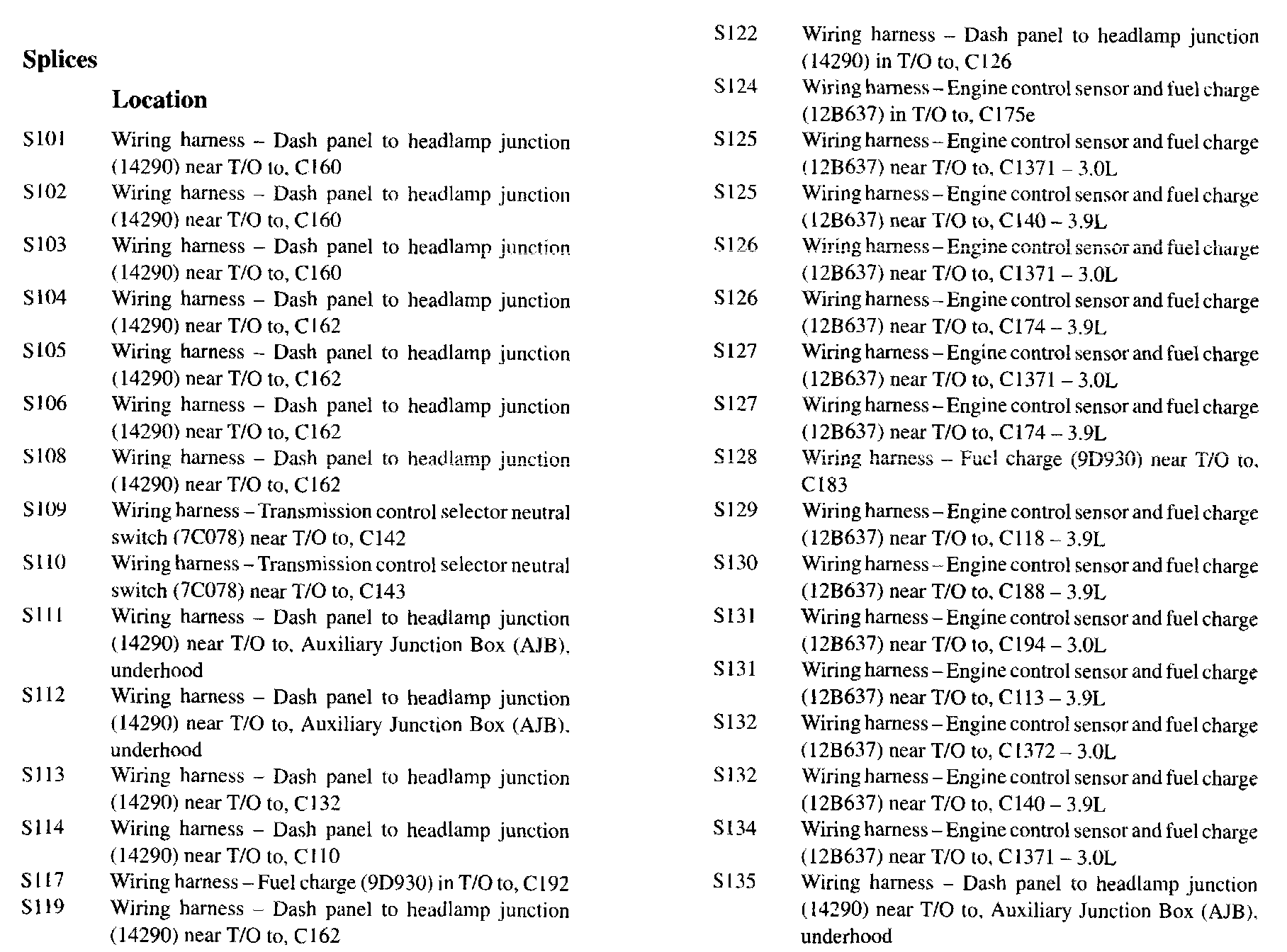

S101-S135:

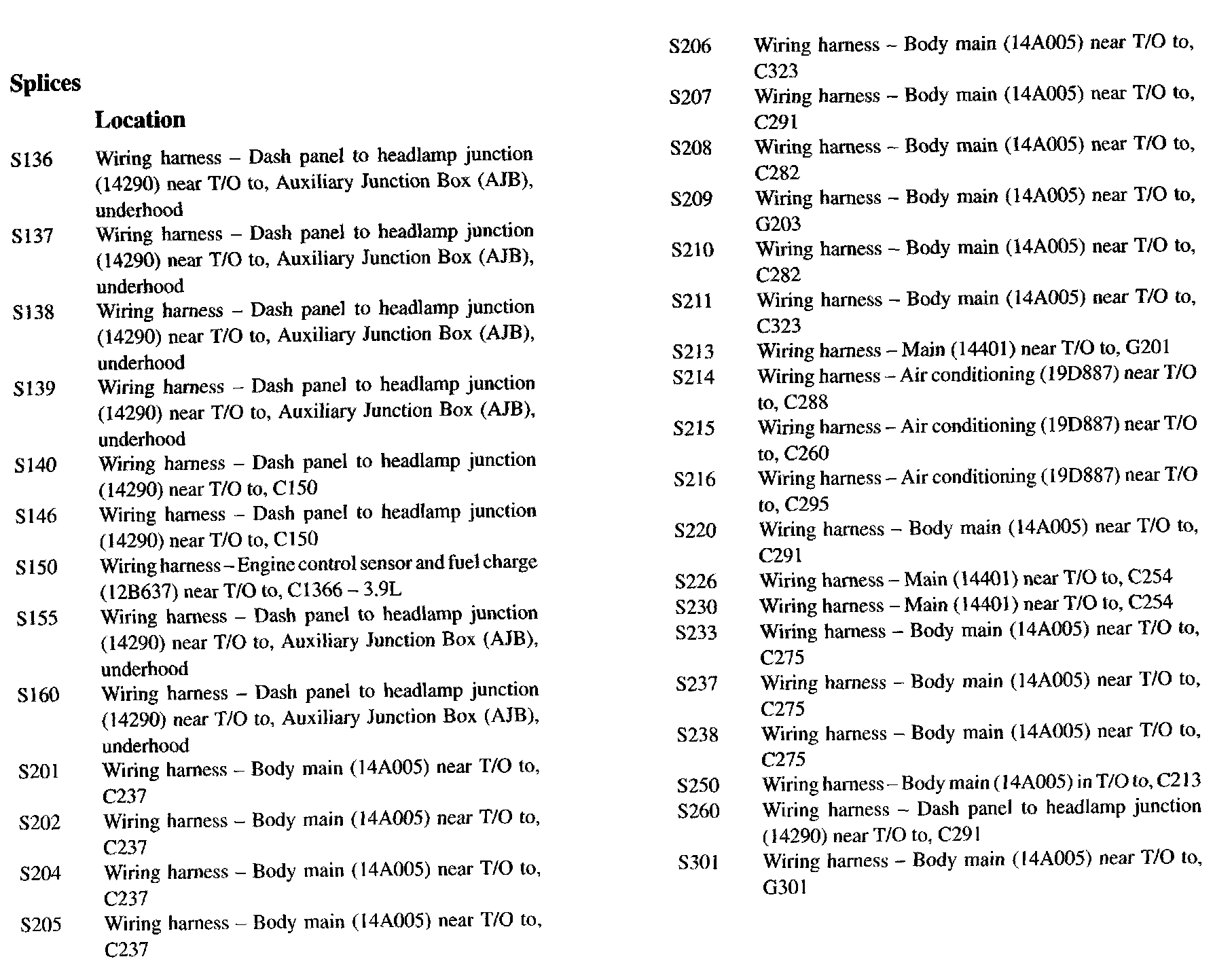

S136-S301:

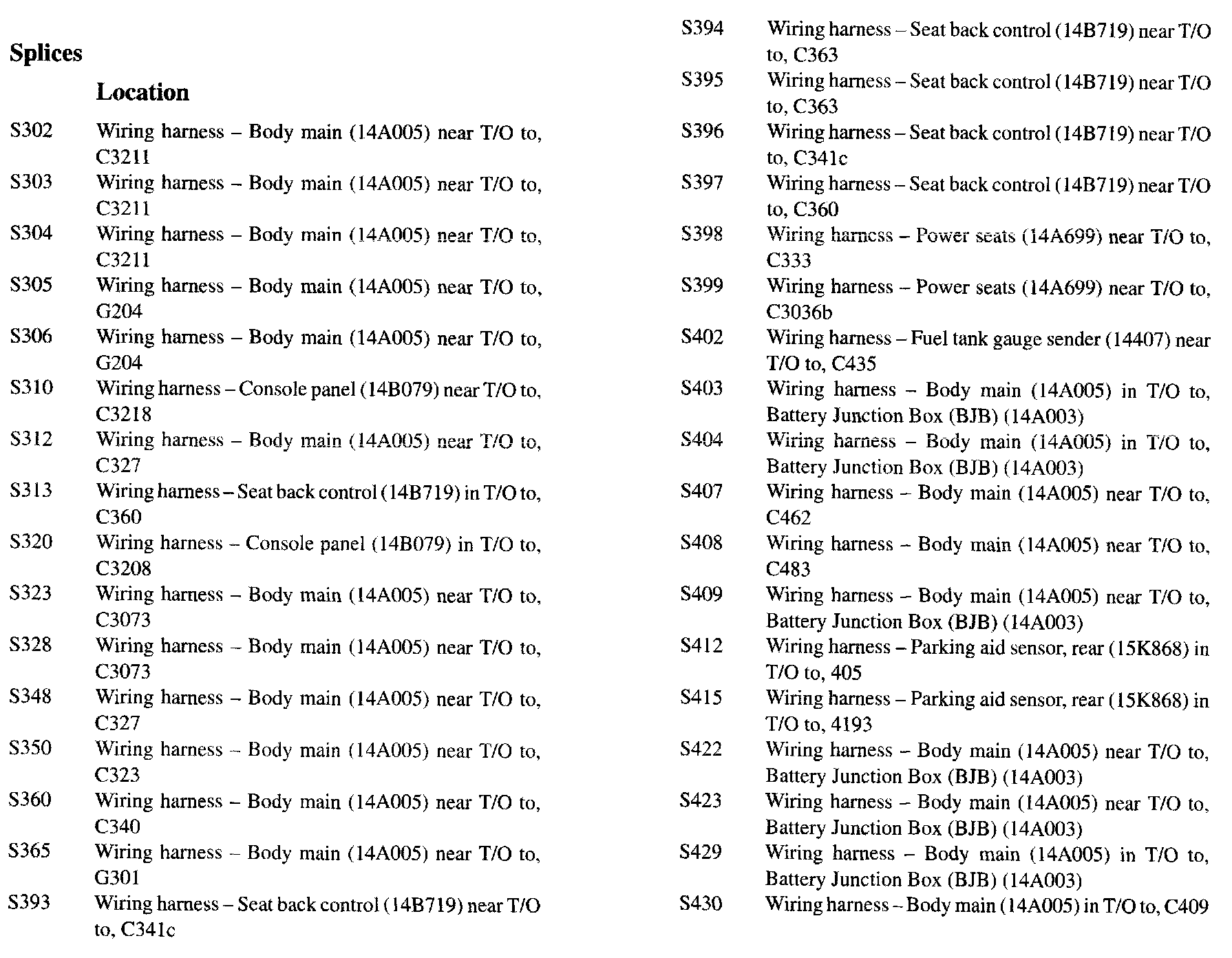

S302-S430:

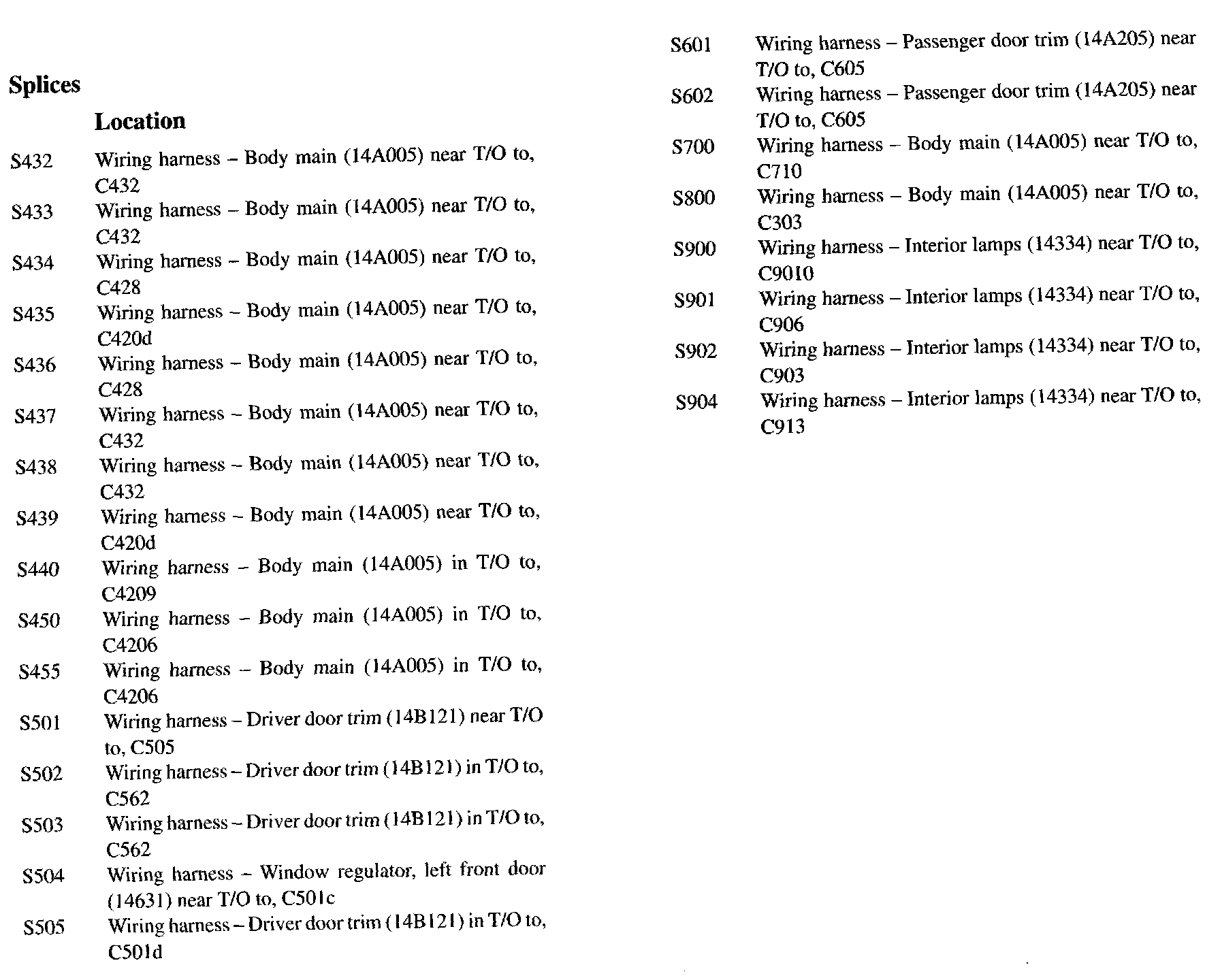

S432-S904:
