Identifying Connector C4209
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Identifying Connector C4209

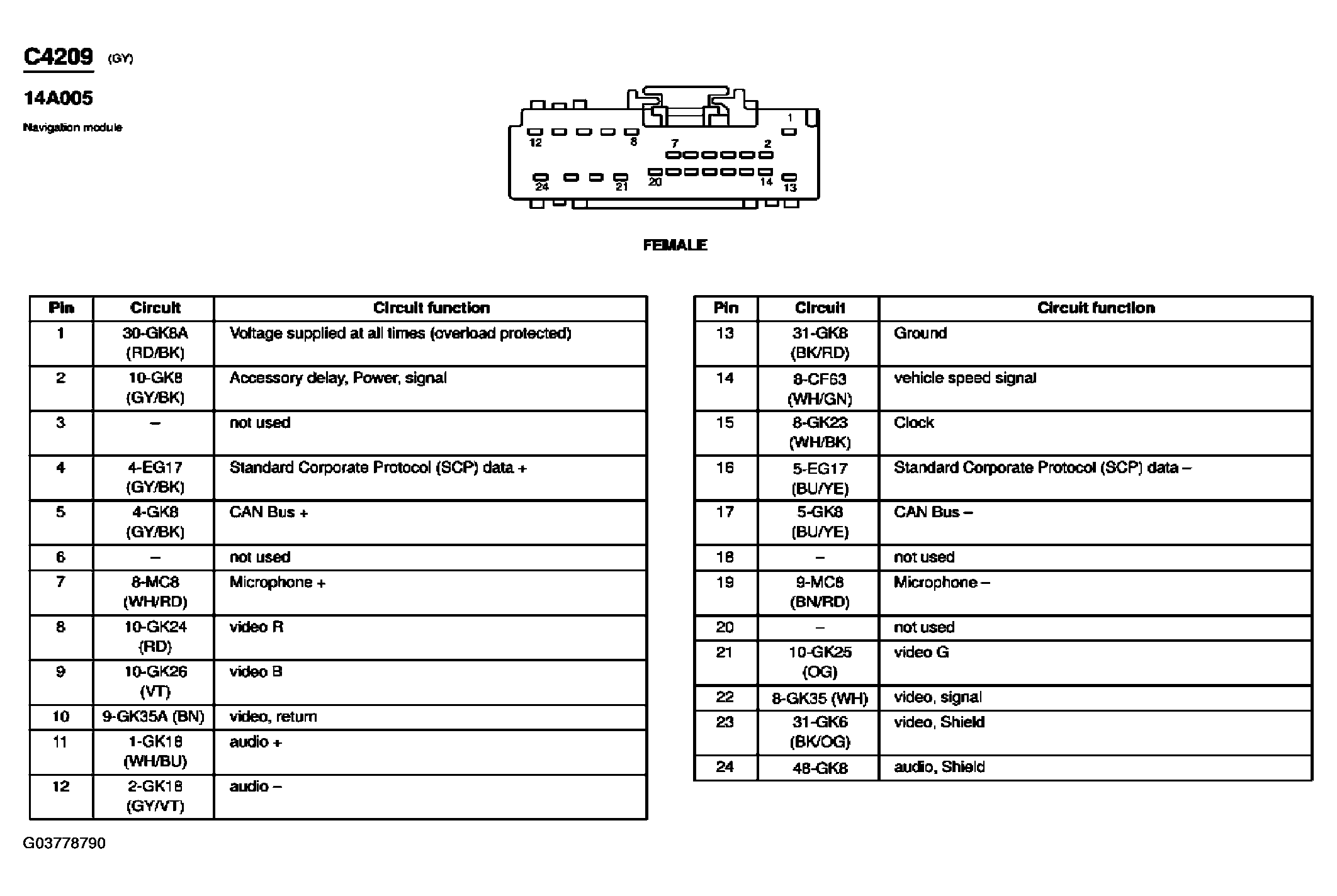

Fig 1: Navigation Module Connector End View (C4209)
Courtesy of FORD MOTOR CO.
