Identifying Connector C4208b
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Identifying Connector C4208b

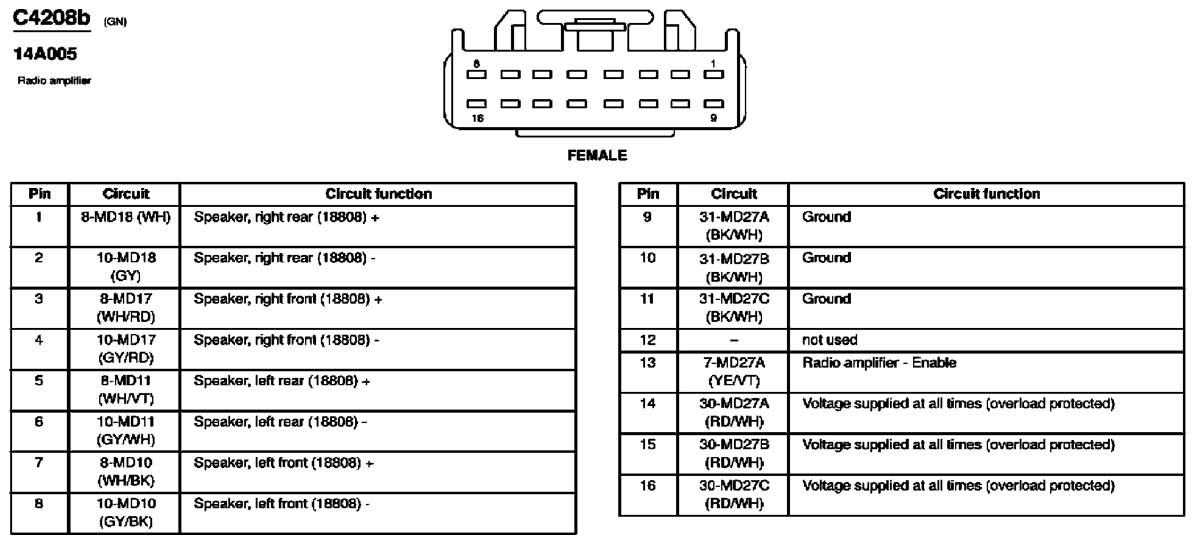

Fig 1: Radio Amplifier Connector End View (C4208b)
Courtesy of FORD MOTOR CO.
