Identifying Connector C283a

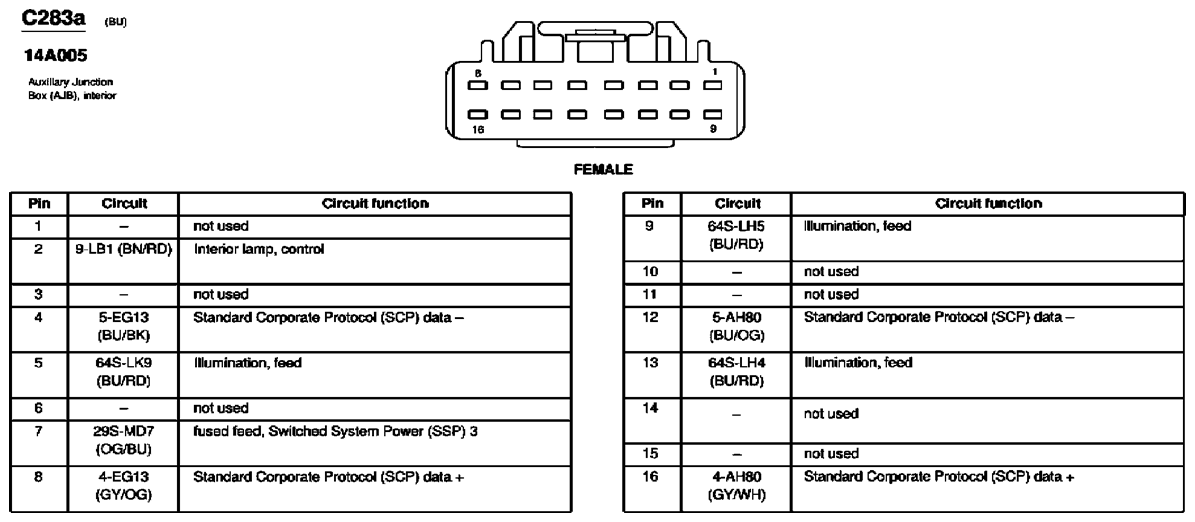

Fig 1: Auxiliary Junction Box (AJB), Interior Connector End View (C283a)
G03778687Courtesy of FORD MOTOR CO.
