Ambient Air Temperature Sensor C132

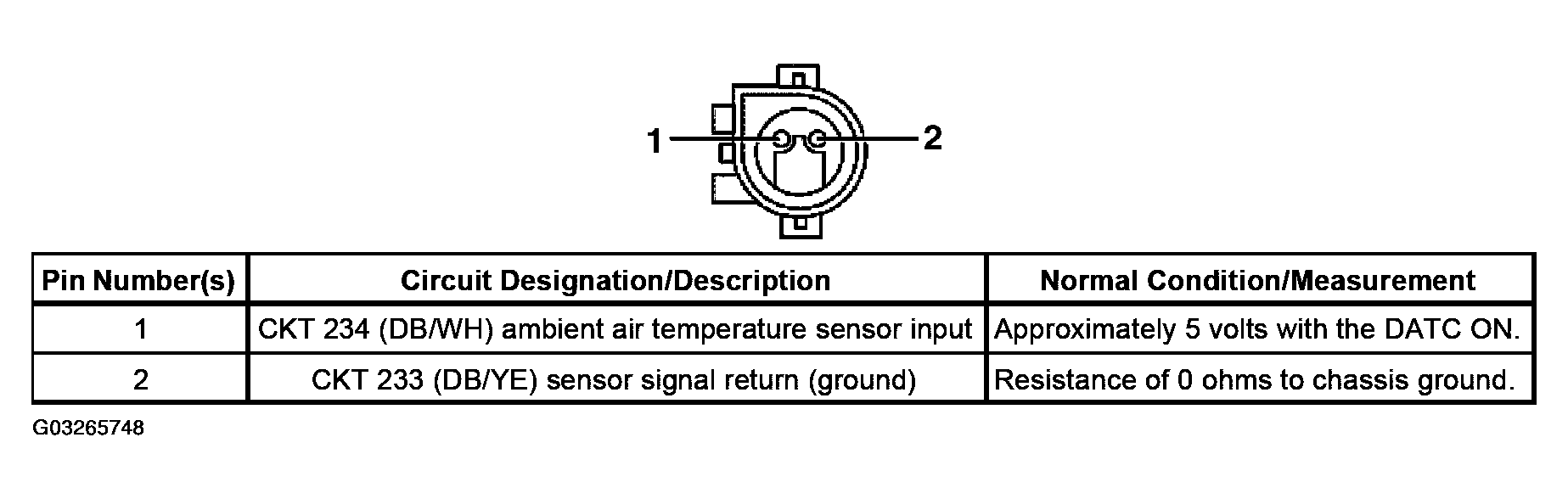

Fig 1: Identifying Ambient Air Temperature Sensor C132 Connector Pins
G03265748Courtesy of FORD MOTOR CO.
