Roof Opening Panel Control Switch

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the components in the order listed in the following illustration.
  2. Install in the reverse order of removal.

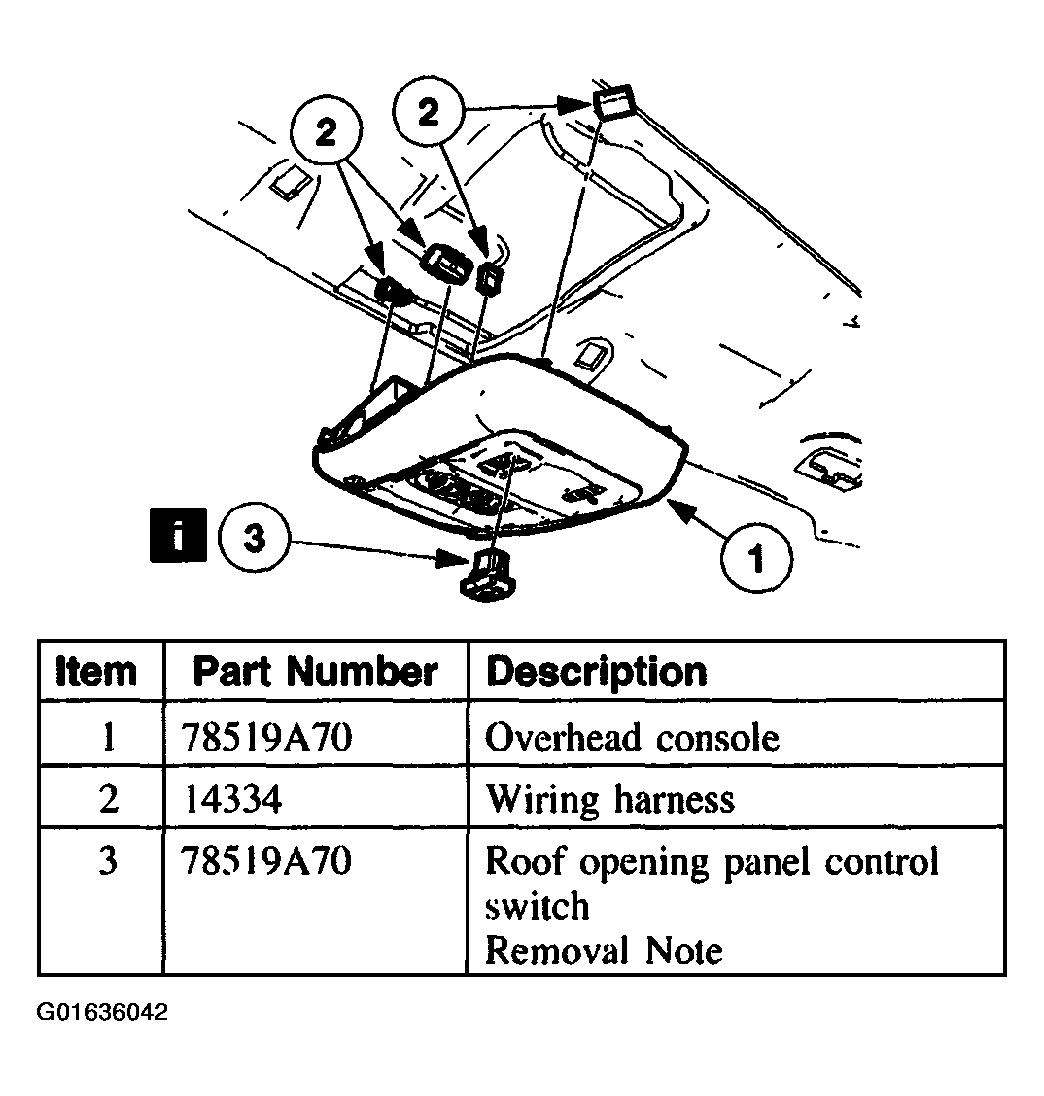

    Fig 1: Roof Opening Panel Control Switch Removal Procedure
    G01636042Courtesy of FORD MOTOR CO.

Item 3: Roof Opening Panel Control Switch Removal Note

  1. Disengage the clips and remove the switch from the overhead console.

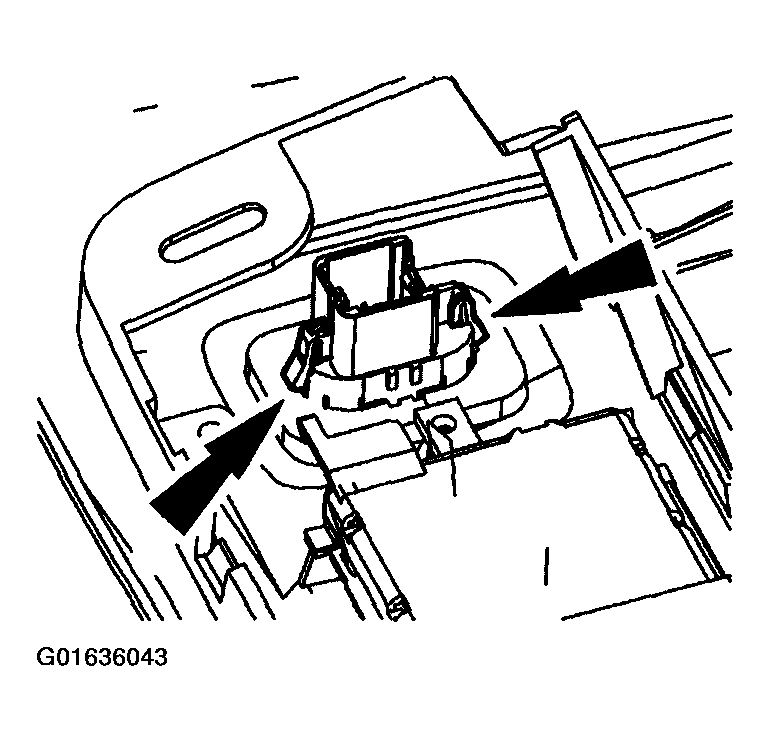

    Fig 2: Identifying Roof Opening Panel Control Switch Clips
    G01636043Courtesy of FORD MOTOR CO.
