Instrument Panel Registers

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

Remove the components in the order indicated in the following illustration. To remove individual components, only perform the following steps:

Fig 1: Removing Individual Components Table
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

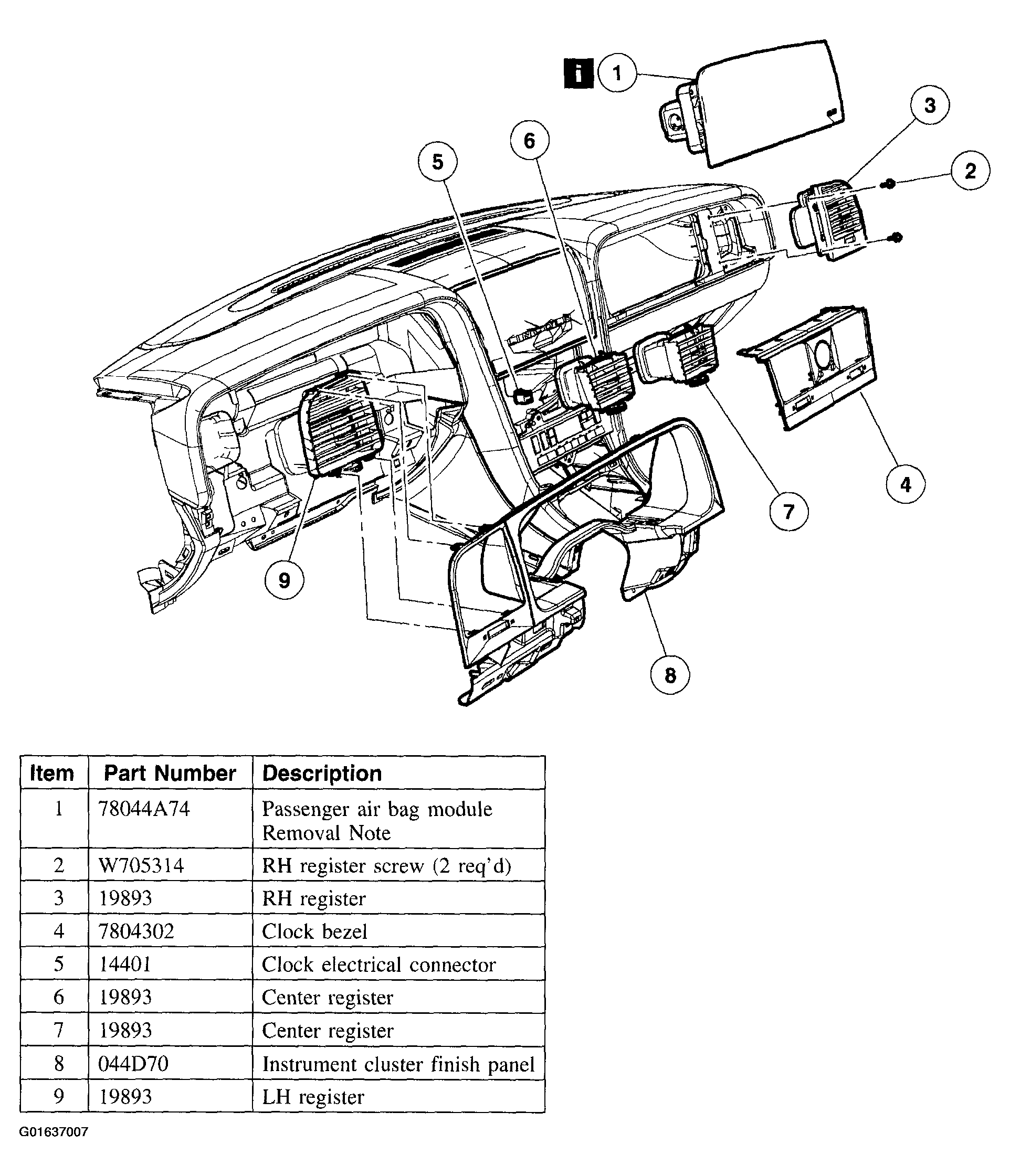

Fig 2: Removal Sequence Of Instrument Panel Registers
Courtesy of FORD MOTOR CO.

Item 1: Passenger Air Bag Module Removal Note

Remove the passenger side air bag module. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
