Pinpoint Test H: The Traction Control Is Inoperative/Cannot Be Disabled

WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.

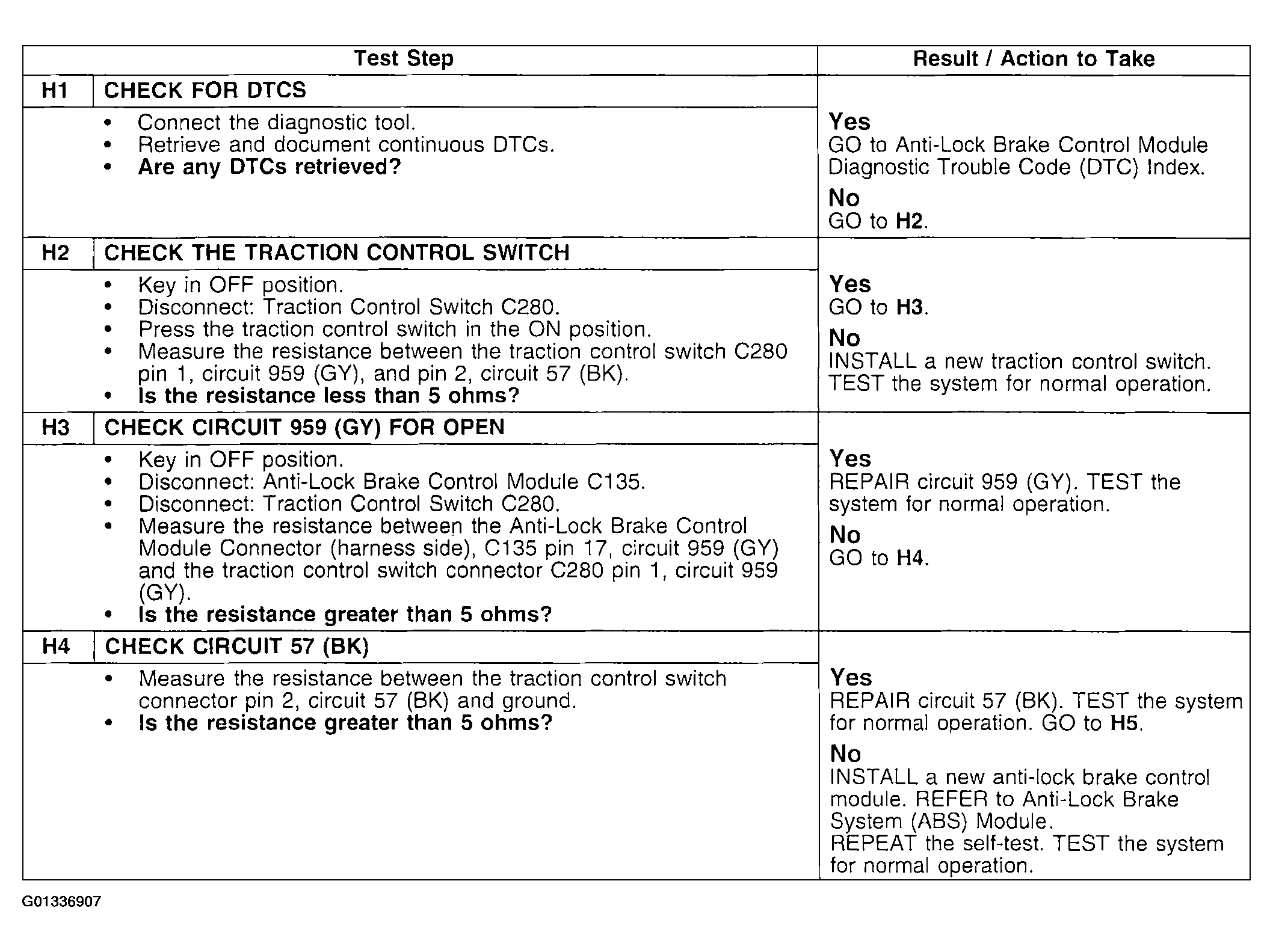

Fig 1: Pinpoint Test H: The Traction Control Is Inoperative/Cannot Be Disabled (Steps H1-H4)

Courtesy of FORD MOTOR CO.

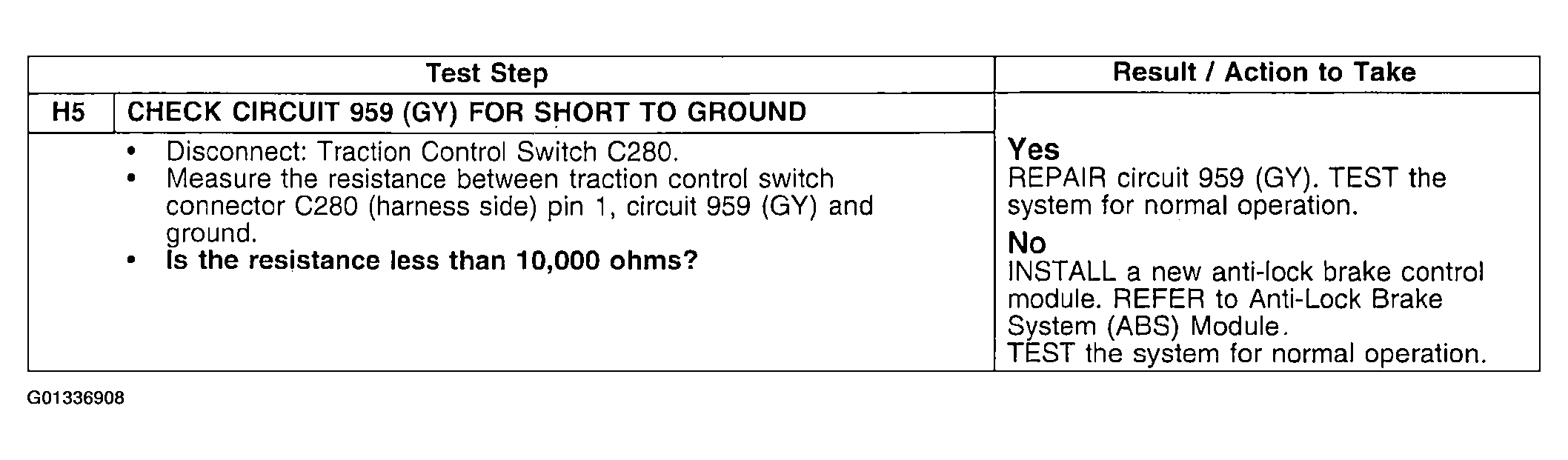

Fig 2: Pinpoint Test H: The Traction Control Is Inoperative/Cannot Be Disabled (Step H5)

Courtesy of FORD MOTOR CO.
