Item 30: Axle Isolator Bushing Disassembly Note

  1. Using the special tools, remove the rear axle isolator bushing.

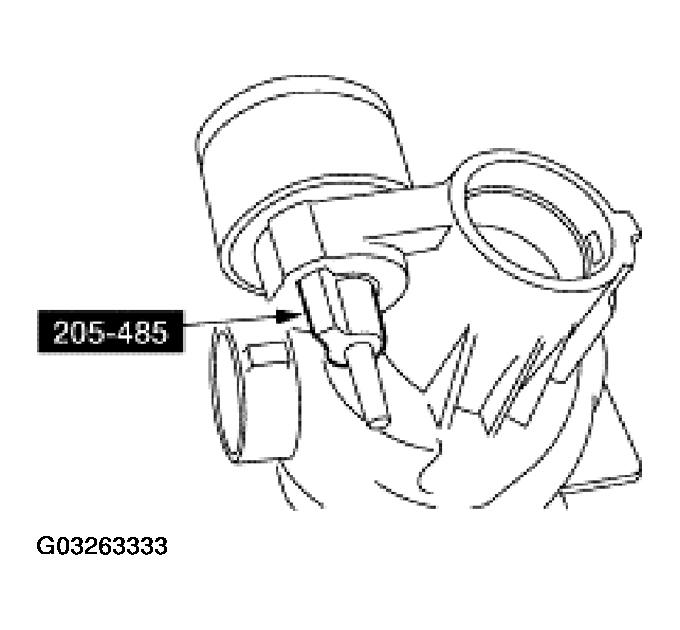

    Fig 1: Removing Rear Axle Isolator Bushing
    G03263333Courtesy of FORD MOTOR CO.
