Sensor Cluster C3179 (4WD)

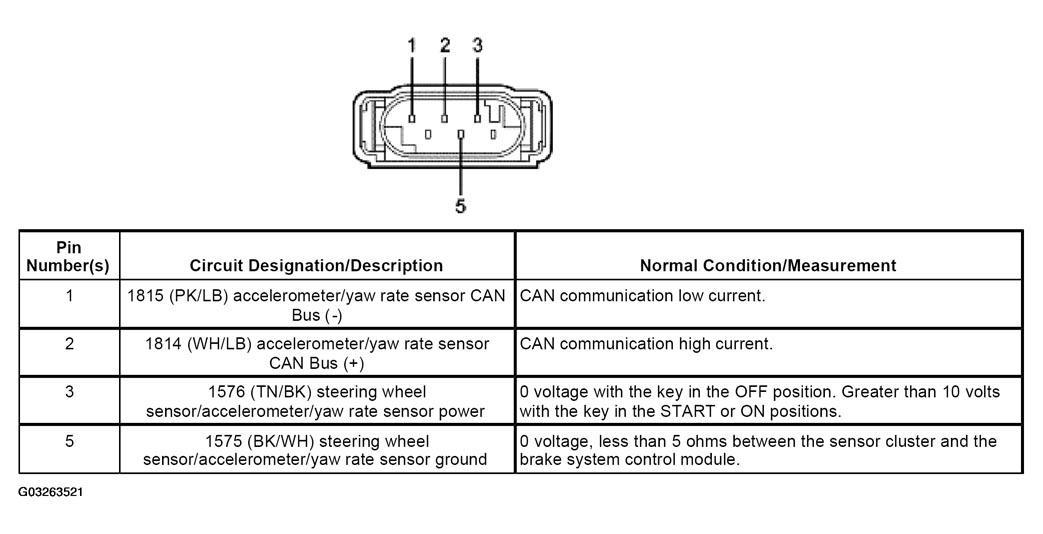

Fig 1: Identifying Sensor Cluster C3179 (4WD) Connector Terminal Specifications
G03263521Courtesy of FORD MOTOR CO.
